Description



Deep Groove Ball Bearings

  • Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
  • Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
  • Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

  • AIMS SKU A0105282
  • Brand NACHI
  • Model Number 6008-ZZE/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 40 x 68 x 15mm
  • R (min) 1
  • Basic Dynamic Load Rating (n) 16800
  • Basic Static Load (N) 11500
  • Limiting Speed (rpm) Grease Lubrication 10000
  • Limiting Speed (rpm) Oil Lubrication 12000

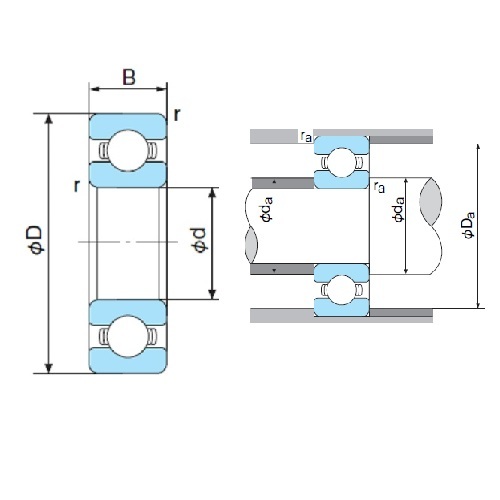

  • Abutment And Fillet Dimension Da (min) Mm 45
  • Abutment And Fillet Dimension Da (max) Mm 63
  • Abutment And Fillet Dimension Ra (max) Mm 1
  • Width (b) mm 15
  • Type Deep-Groove Ball Bearings
  • System of Measurement Metric
SKU: A0105282

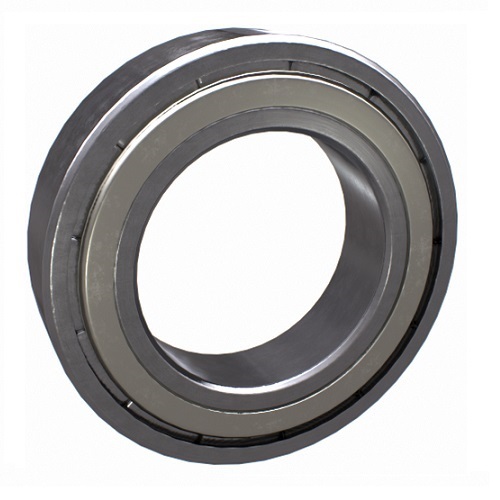

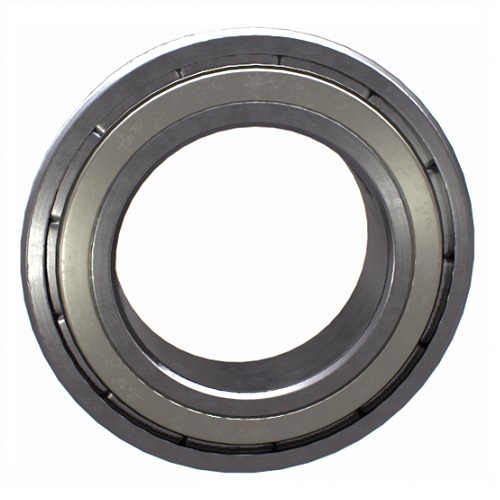

NACHI 6008-ZZE Deep-Groove Ball Bearings 6000 Series ZZ Shielded 40 x 68 x 15mm

Deep-Groove Ball Bearings 6000 Series ZZ Shielded

$17.27
5/5 based on 1 review.
See all reviews

Choose a different size/variant

Calculate Shipping

Resources

Browse other products under

Deep Groove Bearings

Browse other products by

NACHI

Reviews

quality bearing

"This bearing goes in a boat motor to replace failed NSK. Compared to original, open plan, I can see this one has cover that will work much better for the motor and for the bearing."

-
