Description

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.
  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0106684
  • Brand NACHI
  • Model Number 5203-ZZ/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 17 x 40 x 17.5mm
  • R (min) 0.6
  • Basic Dynamic Load Rating (n) 15000
  • Basic Static Load (N) 9250
  • Limiting Speed (rpm) Grease Lubrication 12000
  • Limiting Speed (rpm) Oil Lubrication 17000
  • Width (b) mm 17.5
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 5200 - 5300
SKU: A0106684

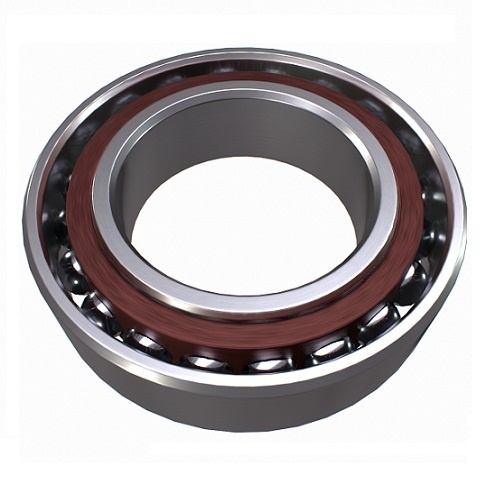

NACHI 5203-ZZ Angular Contact Ball Bearings 5200-5300 2Z Series 17x 40x 17.5mm

Angular Contact Ball Bearings 5200-5300 2Z Series

$34.03
