Spherical Roller Bearings

  • Spherical roller bearings are double row self-aligning bearings capable of carrying heavy radial loads combined with light-moderate thrust loads in either direction.
  • Spherical Roller, Double-Row Barrel Roller Bearing Self Aligning Extra Light, Light & Medium Series designed to accommodate radial loads, as well as axial loads in both directions.
  • Spherical roller bearings are extremely resistant to heavy impact loads and their self-aligning feature allows full capacity loading despite shaft bending and alignment errors of the shaft relative to the housing.

Specifications

  • AIMS SKU A0153897
  • Brand NACHI
  • Model Number 22234EW33KC3/NACHI
  • Da (max) 292
  • Outer Diameter D (mm) 310
  • Hole Count N 6
  • Groove Width A 18
  • Hole Diameter du 8
  • Y0 2.28
  • Y2 3.47
  • Y1 2.33
  • Basic Static Load Rating Cor (n) 1510000
  • Basic Dynamic Load Rating Cr (n) 1390000

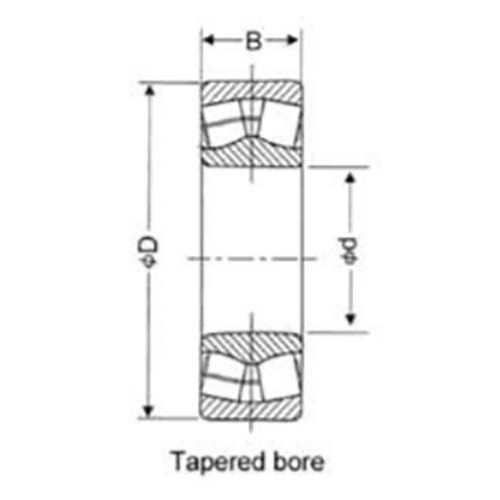

  • Bore Diameter x Outer Diameter x Width (mm) 170 x 310 x 86
  • Da (min) 188
  • Width B (mm) 86
  • Constant E 0.29
  • Bore Diameter d (mm) 170
  • Ra (max) 3
  • Oil Lubrication 1900
  • Grease Lubrication 1400
  • R (min) 4
  • Type Spherical Roller Bearings
  • System of Measurement Metric
  • Series 21300-23200
SKU: A0153897

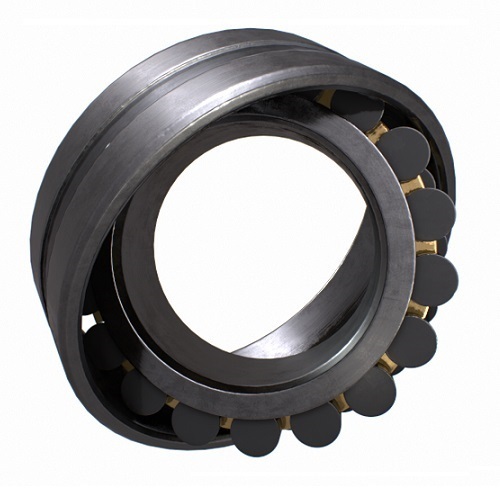

Nachi 22234EW33KC3 Spherical Roller Bearings Tapered Bore (C3) 170 x 310 x 86mm

Spherical Roller Bearings EW33 Tapered Bore (C3)
