Specifications

AIMS SKU A0152783
Max RPM 4900
Torque Nm 360

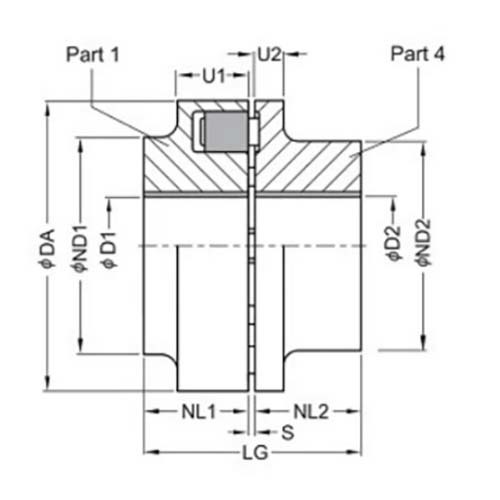

D1 Max (mm) 60
D2 Max (mm) 60
Dimension DA (mm) 140
Dimension Nd1 (mm) 100
Dimension Nd2 (mm) 100
Dimension Nl1/nl2 (mm) 55
Dimension S (mm) 3
Dimension U1 (mm) 34
Dimension U2 (mm) 20
Dimension Lg (mm) 113

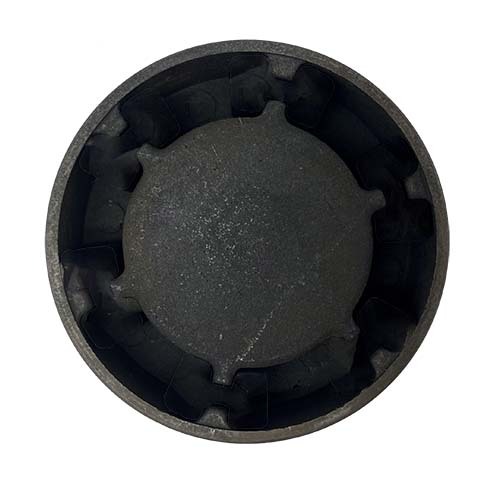

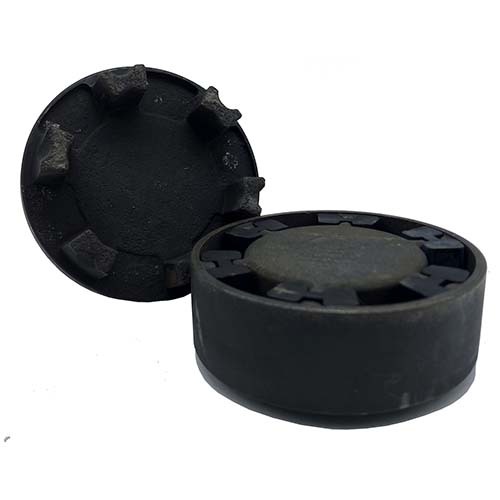

• Type Flexible Coupling Pilot Bore
