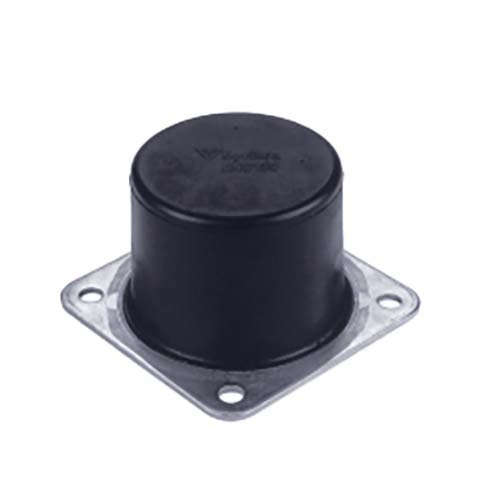

Mackay M2255290 ANB Buffer 70 x 50 x 43mm

Description

Mackay ANB Buffer

Features

Effectively limits movement of equipment or machine components.
Consists of a cylindrical rubber body bonded to a square baseplate of steel.
Each corner of the baseplate has a fixing hole.
Special high-hysteresis rubber compound is used to ensure as much energy absorption as possible.
The volume of the rubber is used at optimum efficiency.

Typical Applications

Wagons
Cabinets
Traversing cranes
Forestry vehicles
Lifting cranes
Off-road material handling equipment
Working beams
Container handling equipment
Falling goods

Specifications

AIMS SKU A0166977

Brand Mackay

Model Number M2255290

Barcode Number 9313699022422

Weight (kg) 0.2

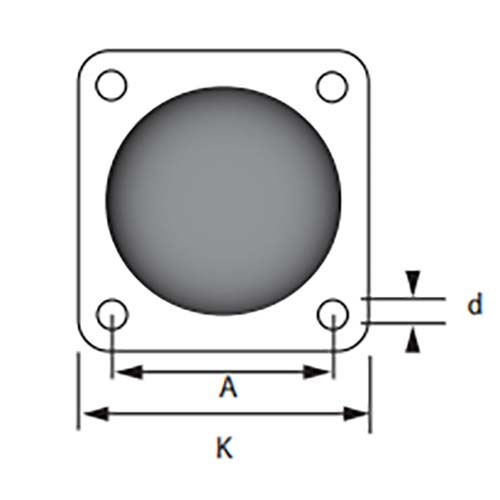

Hole Diameter 7

Centre To Centre 50

Plate Thickness (mm) 3

Compression Deflection (mm) 21

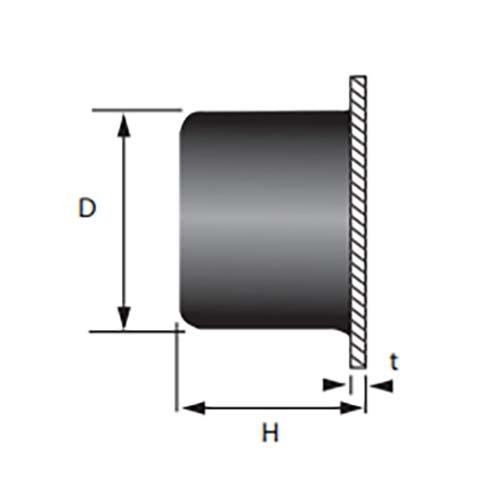

Length x Diameter x Height (mm) 70 x 50 x 43

Compression Load (kg-F) 816

Type ANB Buffer
Material Rubber/Steel

Calculate Shipping

Resources

Technical Data Sheet
