Specifications

AIMS SKU A0074935
Fastener Size M36
Fastener Length 220 mm
Bore Hole (mm) 220

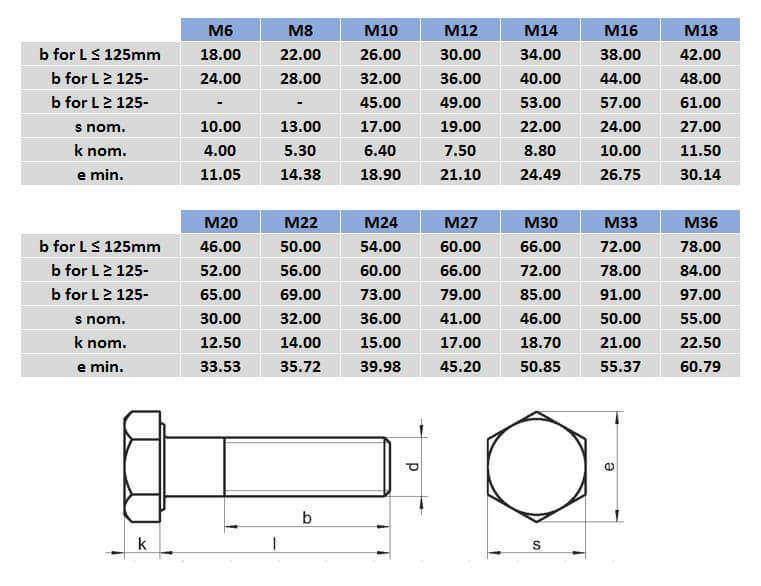

Length (L) M36
b for L < 125mm 78
b for L > 125-200mm 84
s nom. 55
k nom. 22.5
e min. 60.79
b for L > 200mm 97

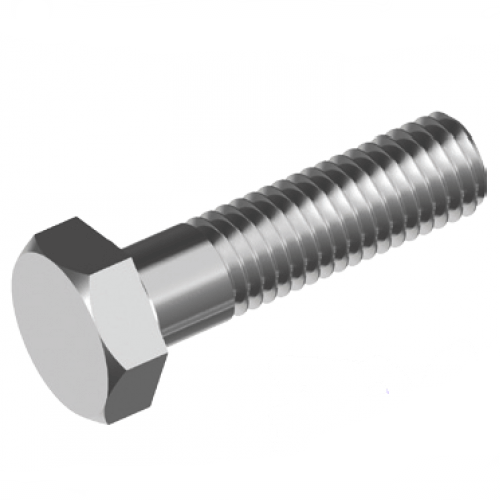

• Type Hex Bolt
• System of Measurement Metric
• Material 316 Stainless Steel
• Drive Type Hex Head
• High Tensile No
