Specifications

AIMS SKU A0074802
Fastener Size M16
Fastener Length 75 mm
Bore Hole (mm) 75

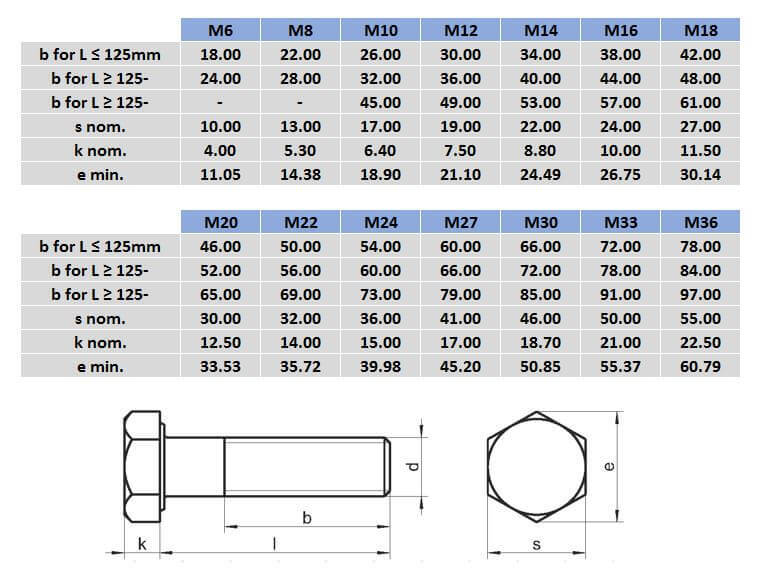

Length (L) M16
b for L < 125mm 38
b for L > 125-200mm 44
s nom. 24
k nom. 10
e min. 26.75
b for L > 200mm 57

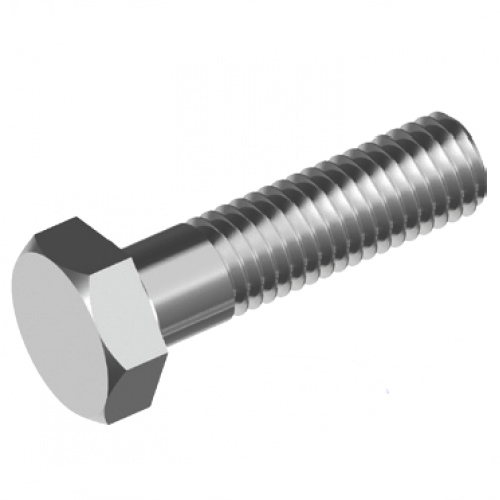

• Type Hex Bolt
• System of Measurement Metric
• Material 316 Stainless Steel
• Drive Type Hex Head
• High Tensile No
