*** JTEKT (Formerly Koyo Brand) ***

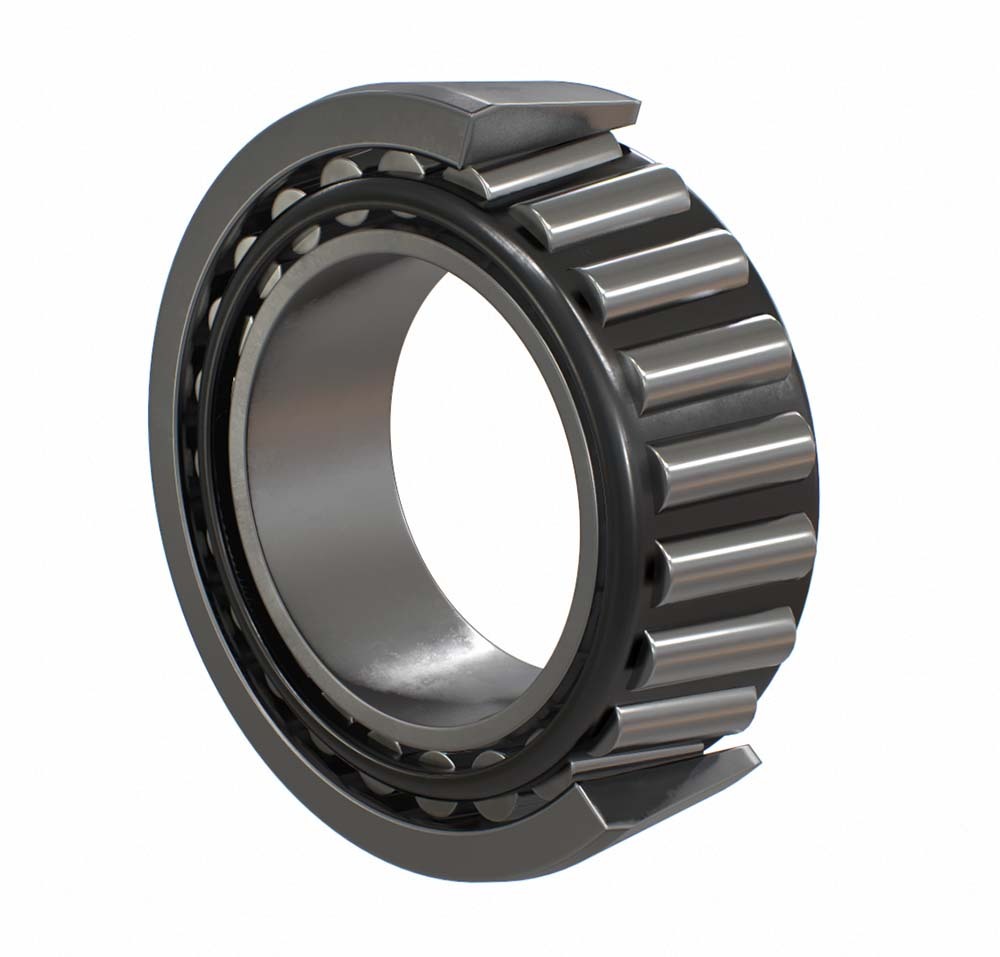

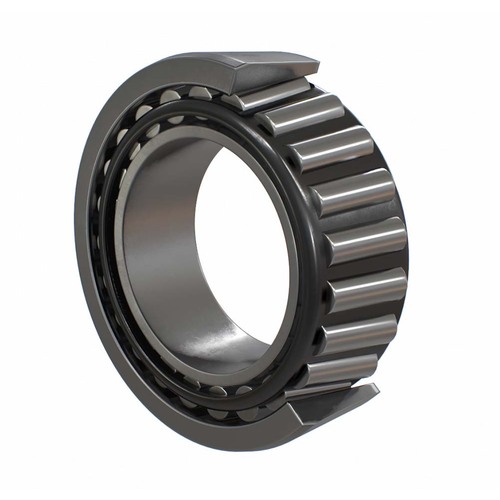

Tapered Roller Bearing

  • Tapered roller bearings are designed such that the outer ring, inner ring, and rollers have tapered surfaces whose apexes converge at a common point on the bearing axis.
  • Along with metric series bearings, inch series bearings are also available.
  • This type of bearing is suitable for applications that involve heavy or impact loading.

About Single-Row Tapered Roller Bearings

  • Able to carry radial and axial load in one direction simultaneously.
  • Because an axial component of force is produced when this type of bearing is loaded radially, two bearings are used together facing one another, or two or more bearings are matched and used.
  • There are standard, medium, and steep types that are different in contact angle size.
  • Medium-tapered metric series bearings are identified by the supplementary code "C" which is added as a suffix to bearing numbers.
  • Bearings whose outer ring width, outer ring small inside diameter, and contact angle are determined in accordance with ISO 355 specifications are identified by the supplementary code "J" as a suffix.
  • Inner ring assemblies and the outer rings of such bearings are interchangeable with those of bearings produced abroad if the bearing numbers are the same.

Specifications

  • AIMS SKU A0157688
  • Brand Koyo
  • Model Number JL69349/10/KOYO
  • Width (mm) 17
  • Basic Load Rating Cr (kn) 54.7

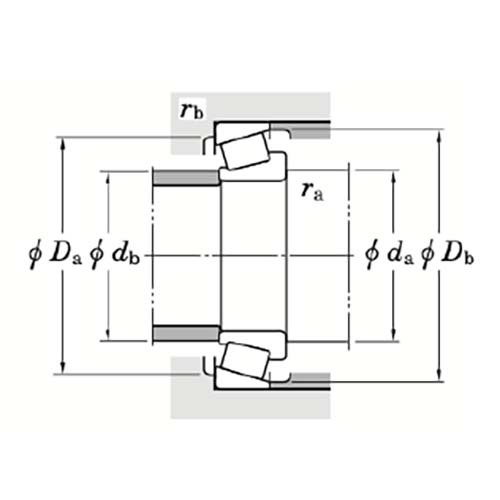

  • Mounting Dimension Rb Max 1.2
  • Mounting Dimension Ra Max 3.5
  • Mounting Dimension Db 56.5
  • Mounting Dimension Da 60
  • Load Center A (mm) 14.6
  • Bearing No. Outer Ring JL69310
  • Bearing No. Inner Ring JL69349
  • Limiting Speed Oil Lub 8000
  • Limiting Speed Grease Lub 6000
  • Basic Load Rating Cor (kn) 58.2
  • Fatigue Load Limit Cu (kN) 8.25
  • Axial Load Factor Y0 0.79
  • Axial Load Factor Y1 1.44
  • Constant E 0.42
  • Outside Diameter (mm) 63
  • Inside Diameter (mm) 38
  • C 13.5
  • r1 (min) SP
  • b (mm) 17
  • R (min) SP
  • Type Tapered Roller Bearings
SKU: A0157688

Koyo/JTEKT Tapered Roller Bearing 38 x 63 x 17mm - JL69349/10

Tapered Roller Bearing - JL69349/10

$32.78
