Description

*** JTEKT (Formerly Koyo Brand) ***

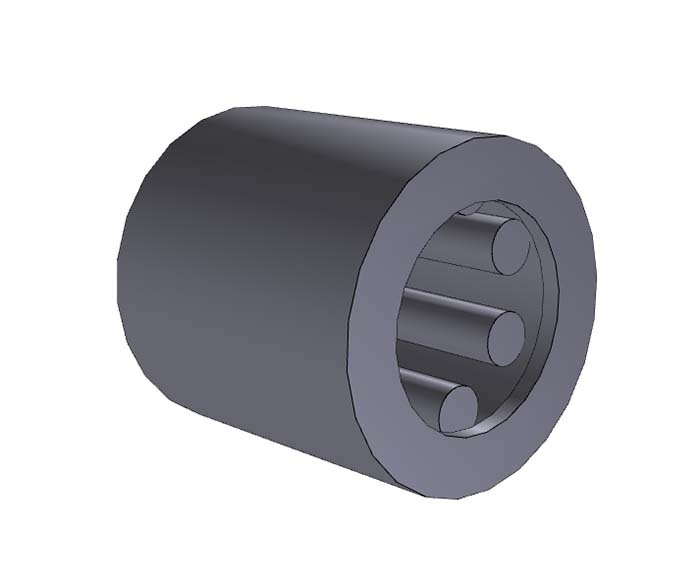

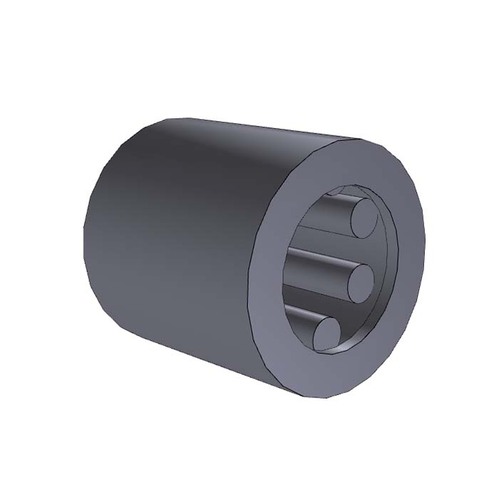

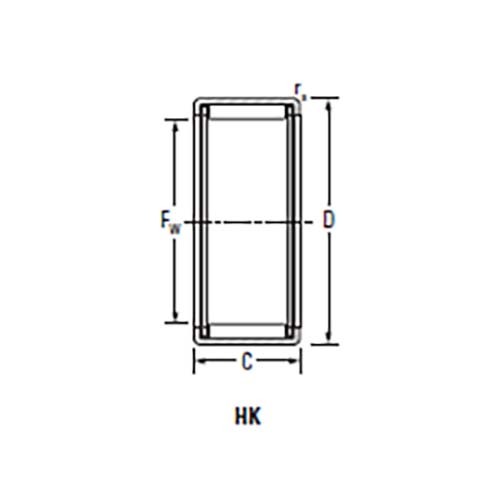

Shell Type Needle Roller Bearing (HK)

  • HK, drawn cup bearing, caged, open ends.

About Drawn Cup Needle Roller Bearing

  • Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers.
  • The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space.
  • Drawn cup bearings are easily installed with a press fit in the housing.

Features

  • Available in two basic designs: full complement and caged.

Benefits

  • Full complement bearings handle high radial load-carrying capability.
  • Caged bearings provide high speed and maximum lubricant-retention capability.

Specifications

  • AIMS SKU A0157173
  • Brand Koyo
  • Model Number HK0509/KOYO
  • Outside Diameter 9 mm
  • Width (mm) 9
  • Shaft Diameter (mm) 5
  • Inside Diameter (mm) 5
  • Outside Diameter (mm) 9
  • Width 9 mm
  • Bore Diameter 5 mm
  • r min. 0.4
  • Fatigue Load Limit Cu (kN) 0.32
  • Basic Load Rating Radial (kn) Cr 2.52
  • Basic Load Rating Radial (kn) C0r 2.07
  • Limiting Speed Grease Lub. 23000
  • Limiting Speed Grease Oil Lub. 36000
  • Type Needle Roller Bearing
SKU: A0157173

Koyo/JTEKT Shell Type Needle Roller Bearing 5 x 9 x 9mm

Shell Type Needle Roller Bearing (HK)

$13.42
