Description

*** JTEKT (Formerly Koyo Brand) ***

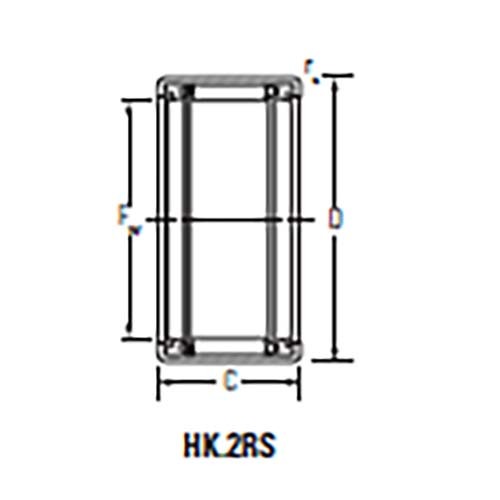

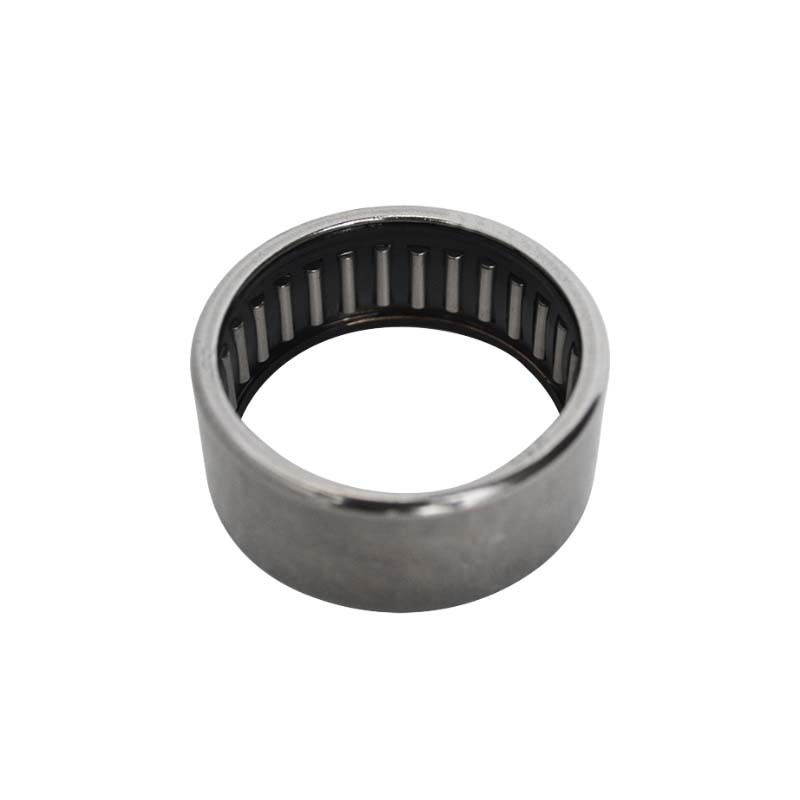

Shell Type Needle Roller Bearing 2RS - Lip Contact Seal (HK)

HK, drawn cup bearing, caged, open ends.
2RS, lip contact seal on each side of the bearing.

About Drawn Cup Needle Roller Bearing

Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers.
The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space.
Drawn cup bearings are easily installed with a press fit in the housing.

Features

Available in two basic designs: full complement and caged.

Benefits

Full complement bearings handle high radial load-carrying capability.
Caged bearings provide high speed and maximum lubricant-retention capability.

Specifications

AIMS SKU A0157150

Brand Koyo

Model Number HK1416-2RS/KOYO

Outside Diameter 16

Width (mm) 20

Outer Diameter (mm) 1890

Outside Diameter (mm) 14

Width 20 mm

Shaft Diameter (in) 0.014

Bore Diameter 16 mm

D (in) 0.5512

rs min (mm) 14 mm

Load Rating Dynamic C (kn) 1

Load Rating Static C0 (kn) 7.17

Load Rating Dynamic C (lbf) 0.039

Load Rating Static C0 (lbf) 1610

Speed Rating Grease Min-1 8.41

C3 Min (in) 0.63

C (+0/+0.000-0.3/-0.012) in 0.7874

Type Needle Roller Bearing
