Koyo/JTEKT Roller Follower Full Comp Cylindrical Roller Cylindrical 15 x 35 x 19mm

Description

*** JTEKT (Formerly Koyo Brand) ***

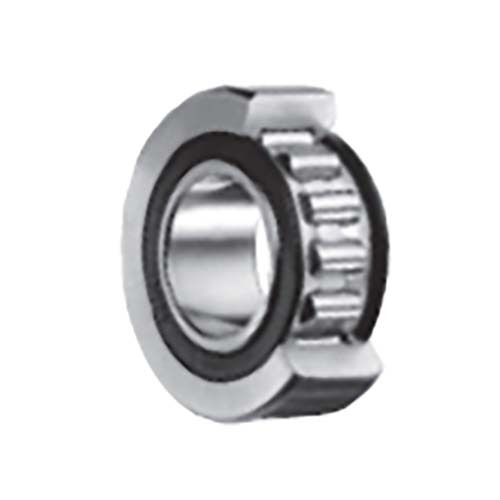

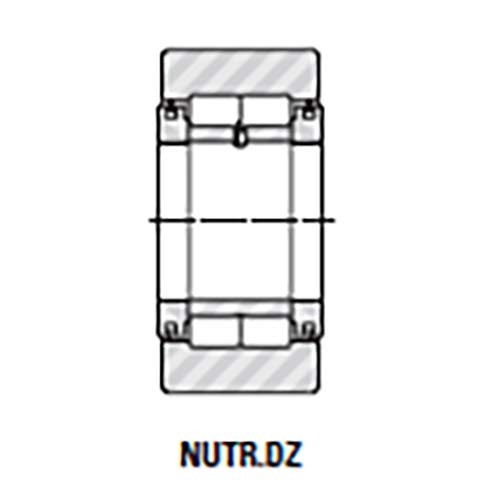

Roller Follower Full Complement Cylindrical Outer Ring (NUTR.DZ)

NUTR, track roller, yoke type, crowned outer diameter with inner ring and washers (two paths of cylindrical rollers).
DZ, cylindrical outer diameter (NUTR style only).

About Track Roller

Track rollers (also known as cam followers) are characterized by their thick-walled outer rings that run directly on a track.
The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses.
Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.

Features

Available in two basic designs: with an inner ring for straddle mounting in a yoke or with an integral stud for cantilever mounting.

Benefits

High load-carrying capability with minimized distortion and bending stresses.
Extended service life under conditions of infrequent re-lubrication.

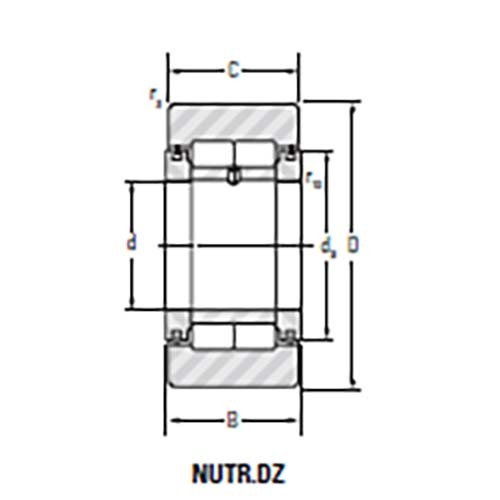

Specifications

AIMS SKU A0157714

Brand Koyo

Model Number NUTR15DZ/KOYO

Width (mm) 19

C (mm) 18

Inside Diameter (mm) 15

Outside Diameter (mm) 35

Speed Rating Grease Min-1 6100

Da (mm) 24

Load Rating Bearing Dynamic C (kn) 24.7

Load Rating Track Roller Dynamic Cw (kn) 16.2

Load Rating Track Roller Dynamic Fr Perm (kn) 10.1

Rs (mm) 0.6

Rls Min (mm) 0.3

Bearing Designation Crowned Track Roller NUTR15

Cylindrical Track Roller NUTR15DZ

Load Rating Bearing Static Co (kn) 29.3

Load Rating Track Roller Static Fr Perm (kn) 16.1

Type Roller Follower Yoke Type
