Description

*** JTEKT (formerly Koyo Brand) ***

Cylindrical Roller Bearing Fixed Outer Loose Inner 2300 Series

  • Fixed Outer Loose Inner.
  • 2300 Series.

About Cylindrical Roller Bearing

  • Cylindrical roller bearings feature high radial load capacity because the rollers and raceway are in linear contact.
  • These bearings are suitable for applications that involve heavy radial and impact loading.
  • They are also appropriate for high-speed applications in that they can be machined very accurately due to their structure.
  • Having a separable inner ring or outer ring, these bearings can be mounted and dismounted easily.
  • The geometry allows for accurate machining to precision grade quality and uses at high speeds.
  • The inner or outer rings can be separated, simplifying mounting and removal of the bearing.

Single-row Cylindrical Roller Bearings

  • The NU and N types exhibit their best performance when used as free-side bearings since they adjust to the shaft's axial movement, to a certain extent, relative to the housing position.
  • The NJ and NF types carry axial load in one direction, while the NUP and NH types can carry a certain degree of axial load in both directions.
  • Type R cylindrical roller bearings feature enhanced load ratings compared with standard series, though both have equal dimensions.
  • This is because type R bearings have a different internal design.
  • They are identified by supplementary code "R".

Main Applications

  • Automotive: Internal combustion engines transmissions, and cargo transportation
  • Electrical: Large and medium sizes motors, traction motors, and generators
  • Industrial: Gearboxes and machine tool spindles, steel mills

Specifications

  • AIMS SKU A0153785
  • Brand Koyo
  • Model Number NU2309/KOYO

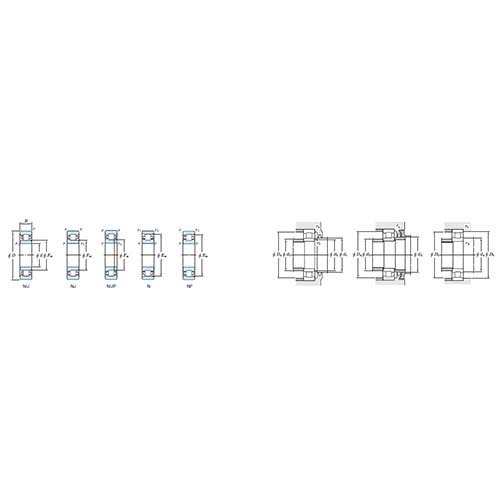

  • Mounting Dimension (mm) Ra Max. 1.5
  • Limiting Speed (min-1) Oil Lub 8300
  • Mounting Dimension (mm) Dd Min. 66
  • Mounting Dimension (mm) Dc Min. 60
  • Boundary Dimension (mm) Fw 58.5
  • Mounting Dimension (mm) Db Min. 53
  • Mounting Dimension (mm) Db Max. 57
  • Limiting Speed (min-1) Grease Oil 5500
  • Boundary Dimension (mm) r min. 1.5
  • Mounting Dimension (mm) Rb Max. 1.5
  • Bore Diameter x Outer Diameter x Width (mm) 45 x 100 x 36
  • Mounting Dimension (mm) Da Max. 92
  • Mounting Dimension (mm) Da Min. 53
  • Fatigue Load Limit (kN) Cu 14.3
  • Basic Load Rating (kN) C0r 113
  • Basic Load Rating (kN) Cr 124
  • Boundary Dimension (mm) r1 min. 1.5
  • Bearing Width B (mm) 36
  • Outside Diameter D (mm) 100
  • Bore Diameter d (mm) 45
  • Type Cylindrical Roller Bearings
  • Series 2300 Series
SKU: A0153785

Koyo/JTEKT NU2309 Cylindrical Roller Bearing 45 x 100 x 36mm Fixed Outer Loose Inner

Cylindrical Bearing Fixed Outer Loose Inner 2300 Series

$316.58
