Description

*** JTEKT (Formerly Koyo Brand) ***

Cylindrical Roller Bearing Loose Outer Fixed Inner 300 Series

  • Loose Outer Fixed Inner.
  • 300 Series.

About Cylindrical Roller Bearing

  • Cylindrical roller bearings feature high radial load capacity because the rollers and raceway are in linear contact.
  • These bearings are suitable for applications that involve heavy radial and impact loading.
  • They are also appropriate for high-speed applications in that they can be machined very accurately due to their structure.
  • Having a separable inner ring or outer ring, these bearings can be mounted and dismounted easily.
  • The geometry allows for accurate machining to precision grade quality and uses at high speeds.
  • The inner or outer rings can be separated, simplifying mounting and removal of the bearing.

Single-row Cylindrical Roller Bearings

  • The NU and N types exhibit their best performance when used as free-side bearings since they adjust to the shaft's axial movement, to a certain extent, relative to the housing position.
  • The NJ and NF types carry axial load in one direction, while the NUP and NH types can carry a certain degree of axial load in both directions.
  • Type R cylindrical roller bearings feature enhanced load ratings compared with standard series, though both have equal dimensions.
  • This is because type R bearings have a different internal design.
  • They are identified by supplementary code "R".

Main Applications

  • Automotive: Internal combustion engines transmissions, and cargo transportation
  • Electrical: Large and medium sizes motors, traction motors, and generators
  • Industrial: Gearboxes and machine tool spindles, steel mills

Specifications

  • AIMS SKU A0153820
  • Brand Koyo
  • Model Number N324/KOYO

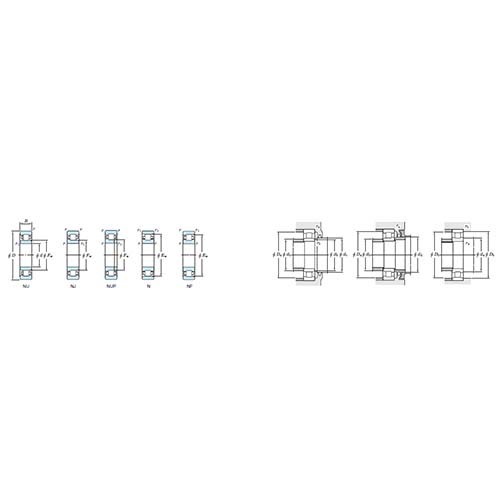

  • Mounting Dimension (mm) Da Max. 247
  • Limiting Speed (min-1) Oil Lub 3000
  • Mounting Dimension (mm) Dd Min. 171
  • Boundary Dimension (mm) Ew 226
  • Mounting Dimension (mm) Db Min. 230
  • Mounting Dimension (mm) Db Max. 247
  • Limiting Speed (min-1) Grease Oil 2200
  • Boundary Dimension (mm) r min. 3
  • Mounting Dimension (mm) Rb Max. 2.5
  • Mounting Dimension (mm) Ra Max. 2.5
  • Bore Diameter x Outer Diameter x Width (mm) 120 x 260 x 55
  • Mounting Dimension (mm) Da Min. 133
  • Fatigue Load Limit (kN) Cu 67.1
  • Basic Load Rating (kN) C0r 551
  • Basic Load Rating (kN) Cr 561
  • Boundary Dimension (mm) r1 min. 3
  • Bearing Width B (mm) 55
  • Outside Diameter D (mm) 260
  • Bore Diameter d (mm) 120
  • Type Cylindrical Roller Bearings
  • Series 300 Series
SKU: A0153820

Koyo/JTEKT N324 Cylindrical Roller Bearing 120 x 260 x 55mm Loose Outer Fixed Inner

Cylindrical Bearing Loose Outer Fixed Inner 300 Series

$1,913.37
