Description

*** JTEKT (Formerly Koyo Brand) ***

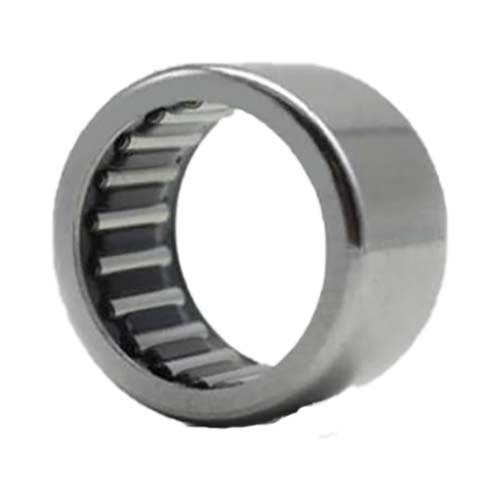

Machined Type Needle Roller Bearing w/o Inner Ring (NK)

About Heavy-Duty Needle Roller Bearings

Heavy-duty needle roller bearings consist of a machined and ground channel-shaped outer ring with a complement of needle rollers, and a cage.
The high-strength cage retains and guides the rollers. An optional lubrication groove and hole in the outer ring facilitates re-lubrication.
These bearings can be used with or without a machined and ground inner ring, depending on the suitability of the shaft as a raceway surface.

Features

Thick outer ring provides maximum load capacity and shock resistance with a relatively small radial cross section.

Benefits

Specifications

AIMS SKU A0157091

Brand Koyo

Model Number NK43/30/KOYO

Outside Diameter 53 mm

Width (mm) 30

Shaft Diameter (mm) 43

Inside Diameter (mm) 43

Outside Diameter (mm) 53

Width 30 mm

Bore Diameter 43 mm

Fatigue Load Limit Cu (kN) 13.4

R Min. (mm) 0.3

Basic Load Rating Radial (kn) Cr 41.6

Basic Load Rating Radial (kn) C0r 86.6

Limiting Speed Grease Lub. 6400

Limiting Speed Grease Oil Lub. 9900
