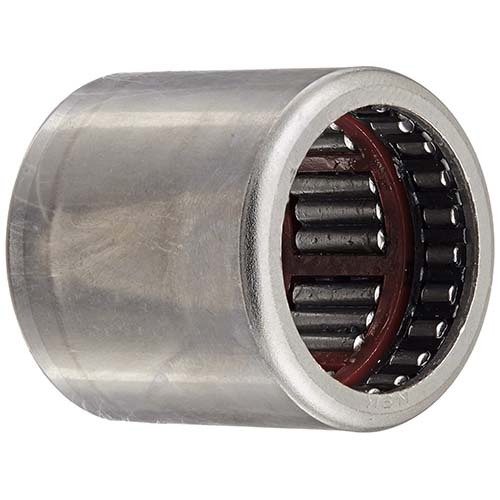

Koyo/JTEKT Drawn Cup Needle Roller Bearing - Roller Clutch 25 x 32 x 30mm

Description

*** JTEKT (Formerly Koyo Brand) ***

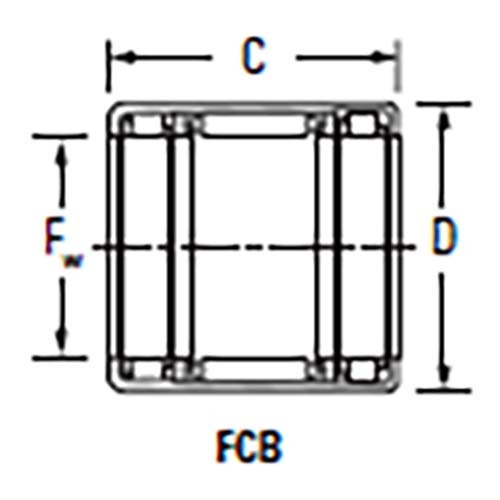

Drawn Cup Needle Roller Bearing - Roller Clutch (FCB)

Regular clutch and bearing assembly, multi-roller per stainless steel spring.

About Drawn Cup Roller Clutch And Bearing Assembly

Clutch and bearing assembly engages when the housing is rotated relative to shaft in direction of arrow marking (LOCK), as labeled on cup.
Shaft raceway and housing bore diameters that are necessary for proper mounting and operation are listed on the opposite page.
Proper inspection requires use of ring gage and bore plug gage.
Type RCB clutch and bearing assemblies have springs integrally molded with the cage to position the rollers for lockup.

Features

Compact, lightweight and operate directly on a hardened shaft.

Benifits

Installation is easily accomplished with simple press fit.

Specifications

AIMS SKU A0157523

Brand Koyo

Model Number FCB-25/KOYO

Width (mm) 30

Load Rating C0 Static 13.1

Mounting H Min. 31.972

Mounting H Max. 31.988

Mounting S Min. 24.991

Mounting S Max. 25

Gaging Clutch Overrun & Bearing Go Plug 25.007

Gaging Clutch Locking Plug 24.967

Gaging Ring Gage 31.972

Overrun Limiting Speed Rating Rotating Shaft 8700

Load Rating C Dynamic 11.3

Z Min. O.d Steel Housing (rated Torque) 46

Torque Rating 71

Clutch And Bearing Assembly Designation FCB-25

Gaging Bearing No Go Plug 25.043

Shaft Diameter 25

Outside Diameter (mm) 32

Inside Diameter (mm) 25

Type Drawn Cup Needle Roller Bearing
