Description

*** JTEKT (Formerly Koyo Brand) ***

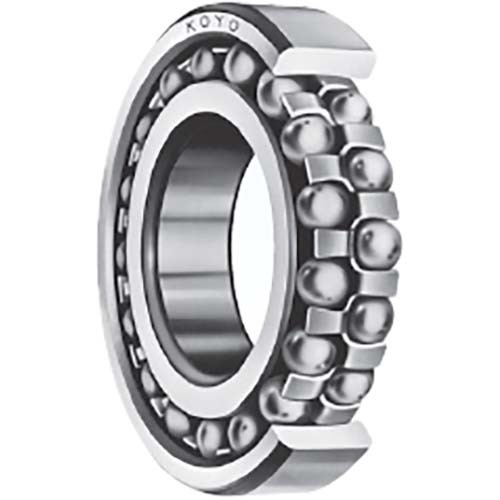

Self Aligning Ball Bearing Cylindrical Bore - 1200 Series

Cylindrical Bore.
1200 Series.

About Self Aligning Ball Bearing

Self-aligning ball bearings have a spherical outer ring raceway, the center of whose curvature meets that of the bearing itself, so that the inner ring, balls, and cage continue to rotate, aligning themselves if they have become misaligned within design limits.
This type of bearing is suitable when the displacement of the centers around which the shaft and housing rotate and shaft deflection are likely to occur.
Bearings with a tapered bore can easily be fit to the shaft with an adapter assembly.

Features of Self Aligning Ball Bearing

The Self-Aligning ball bearing has two rows of balls.
The balls roll on a spherical outer ring raceway.
The inner ring, balls, and retainer can align themselves and accommodate for the shaft and housing misalignment and deflections.
The tapered bore design allows for easy mounting with an adaptor sleeve.
Pressed steel cages are either a staggered or snap-type.

Main Applications

Power transmission shafts of woodworking and spinning machines Plummer blocks.

Specifications

AIMS SKU A0153360

Brand Koyo

Model Number 1215/KOYO

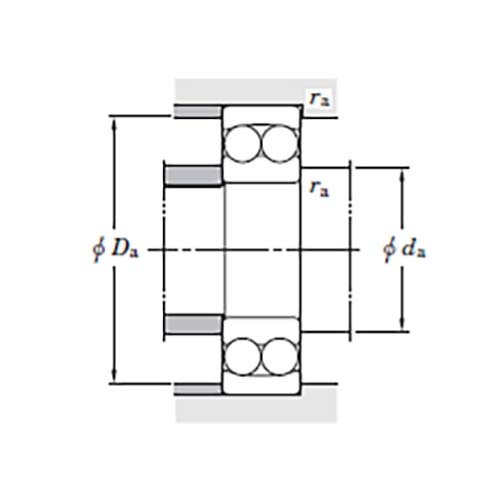

Mounting Dimension (mm) Ra Max. 1.5

Mass (kg) Cylindrical Bore 1.36

Axial Load Factor Y0 3.77

Axial Load Factor Y2 5.58

Axial Load Factor Y1 3.6

Constant E 0.17

Limiting Speed (min-1) Lub. Oil 5300

Limiting Speed (min-1) Grease Oil 4300

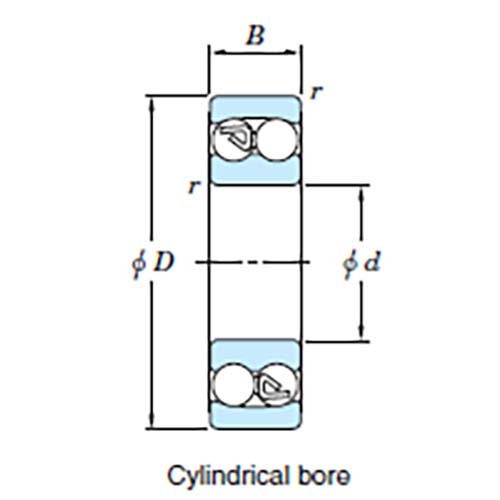

Boundary Dimension (mm) r min. 1.5

Bore Diameter x Outer Diameter x Width (mm) 75 x 130 x 25

Mounting Dimension (mm) Da Max. 122

Mounting Dimension (mm) Da Min. 83

Fatigue Load Limit (kN) Cu 0.97

Basic Load Rating (kN) C0r 15.5

Basic Load Rating (kN) Cr 38.8

Bearing Width B (mm) 25

Outside Diameter D (mm) 130

Bore Diameter d (mm) 75

Type Self Aligning Ball Bearing
Series 1200 Series
