Specifications

AIMS SKU A0155859
Brand IKO
Model Number CRH44VBUU/IKO
D1 (mm) 31.75
C1 (in) 1/16
Stud Diameter (mm) 31.75
Stud Diameter (inch) 1 1/4
G UNF 1 1/4 - 12
G1 (in) 3/16
B max (in) 1.57
B2 (in) 2 1/4
B3 (in) 9/16
B3 (mm) 14.288
g2 (mm) 3.175
G2 (in) 1/8
H (in) 1/2
R (in) 3/32
Mounting Dimension f Min. (mm) 40.878
Mounting Dimension f Min. (in) 1 39/64
Maximum Tightening Torque N-m 500
B2 (mm) 57.15
Roller Diameter 2 /34 in
Stud Diameter 1 1/4 in
Width (in) 1 1/2
d1 (in) 1 1/4
Basic Static Load Rating C0 (N) 116000
Basic Dynamic Load Rating C (N) 61400
Roller Width 1 1/2 in
B Max (mm) 40
Outside Diameter (in) 2 /34
H (mm) 12.7
g1 (mm) 4.762
R (mm) 2.381
D (mm) 69.85
C1 (mm) 1.588
C (mm) 38.1

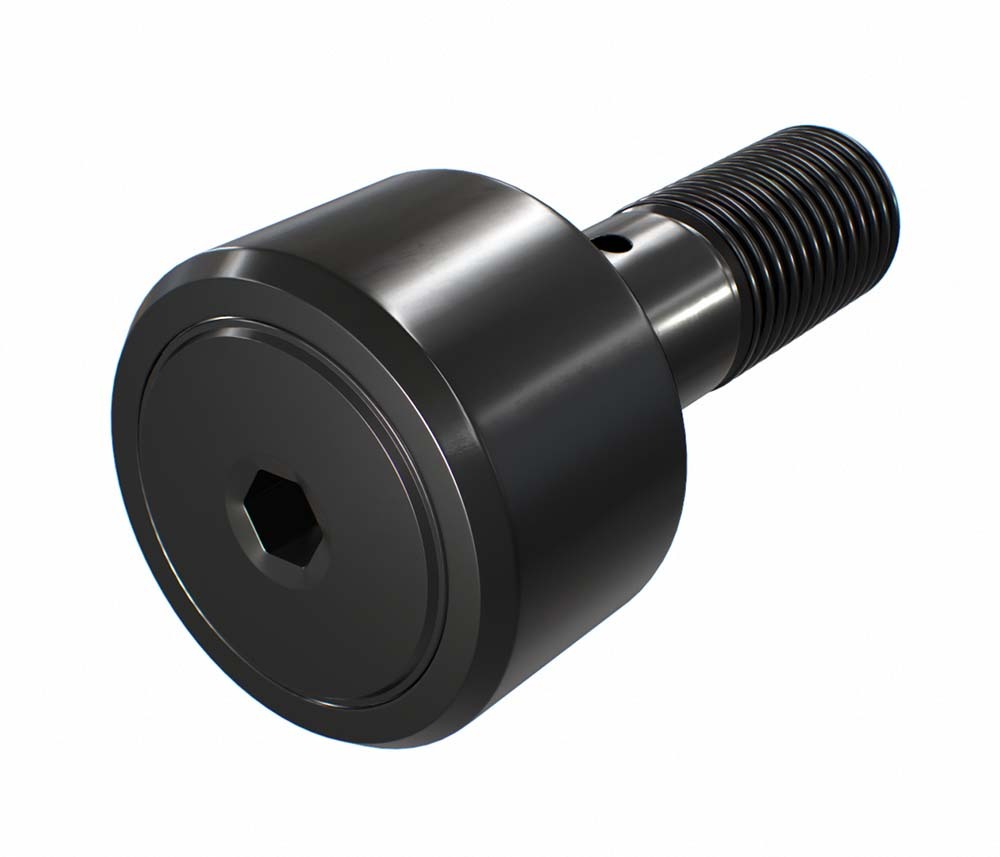

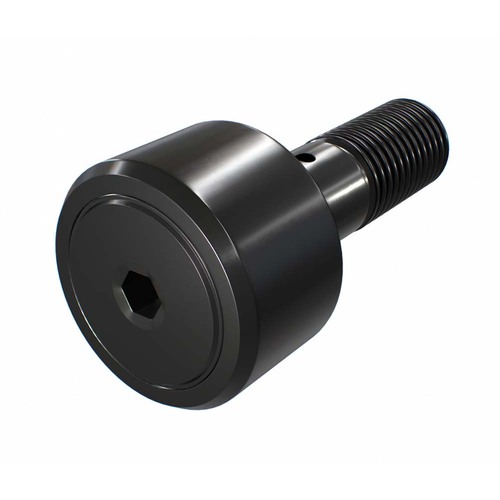

• Type Cam Follower
