Description

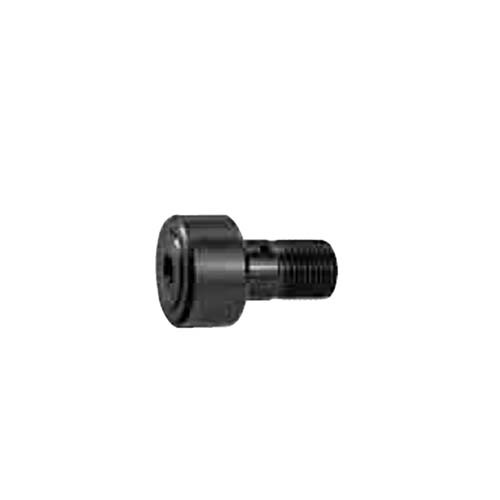

Cam Follower 2RS Full Complement Crowned Outer Ring (CRH)

  • Sealed type.
  • With hexagon hole.
  • Full complement.
  • Crowned outer ring.
  • CRH, Inch series Cam Follower

About Cam Follower

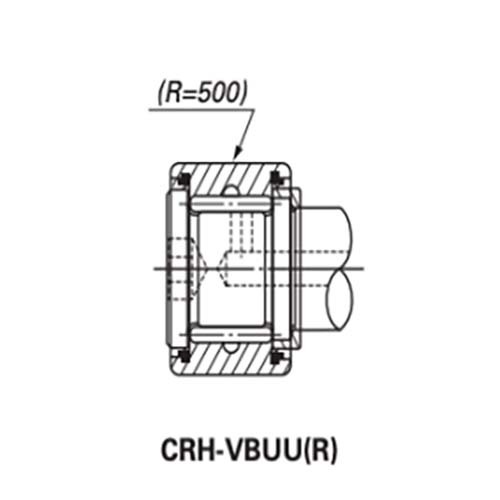

  • Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
  • They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

  • These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
  • As studs already have threads or steps, they are easy to mount.
  • Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
  • They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
  • Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.

Specifications

  • AIMS SKU A0155868
  • Brand IKO
  • Model Number CRH16VBUUR/IKO
  • D1 (mm) 15.875
  • C1 (in) 1/16
  • Stud Diameter (mm) 15.875
  • Stud Diameter (inch) 5/8
  • G UNF 5/8 - 18
  • G1 (in) 3/16
  • B max (in) 0.7
  • B2 (in) 1
  • B3 (in) 1/4
  • B3 (mm) 6.35
  • g2 (mm) 2.381
  • G2 (in) 3/32
  • H (in) 1/4
  • R (in) 12
  • Maximum Tightening Torque N-m 57.8
  • Mounting Dimension f Min. (mm) 18.256
  • Mounting Dimension f Min. (in) 23/32
  • B2 (mm) 25.4
  • Roller Diameter 1 in
  • Stud Diameter 5/8 in
  • Width (in) 5/8
  • d1 (in) 5/8
  • Basic Static Load Rating C0 (N) 22700
  • Basic Dynamic Load Rating C (N) 13100
  • Roller Width 5/8 in
  • B Max (mm) 17.9
  • Outside Diameter (in) 1
  • H (mm) 6.35
  • g1 (mm) 4.762
  • R (mm) 300
  • D (mm) 25.4
  • C1 (mm) 1.588
  • C (mm) 15.875
  • Type Cam Follower
SKU: A0155868

IKO Cam Follower Full Comp HD Hex 2RS Crowned Outer Ring 5/8 x 1 x 5/8"

Cam Follower Full Complement Crowned Outer Ring - CRH

$101.86
