Description

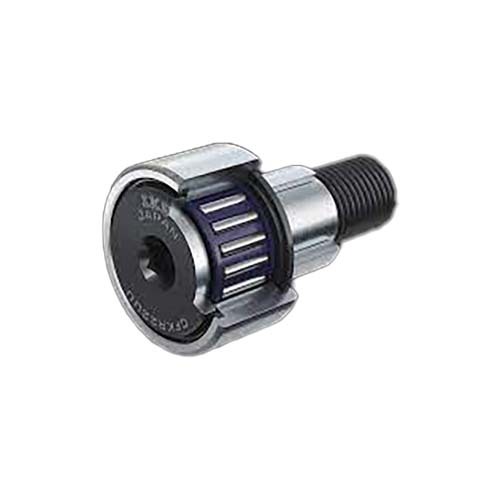

Cam Follower Eccentric Collar 2RS Cylindrical Outer Ring (CFE)

Sealed type.
With hexagon hole.
Cylindrical outer ring.
CFE, Eccentric type Cam Follower.
An eccentric collar is assembled over the Cam Follower stud, enabling the outer ring to be positioned easily in the radial direction against the mating track surface.
Eccentricity is 0.4 to 1.5mm.

About Cam Follower

Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
As studs already have threads or steps, they are easy to mount.
Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.
