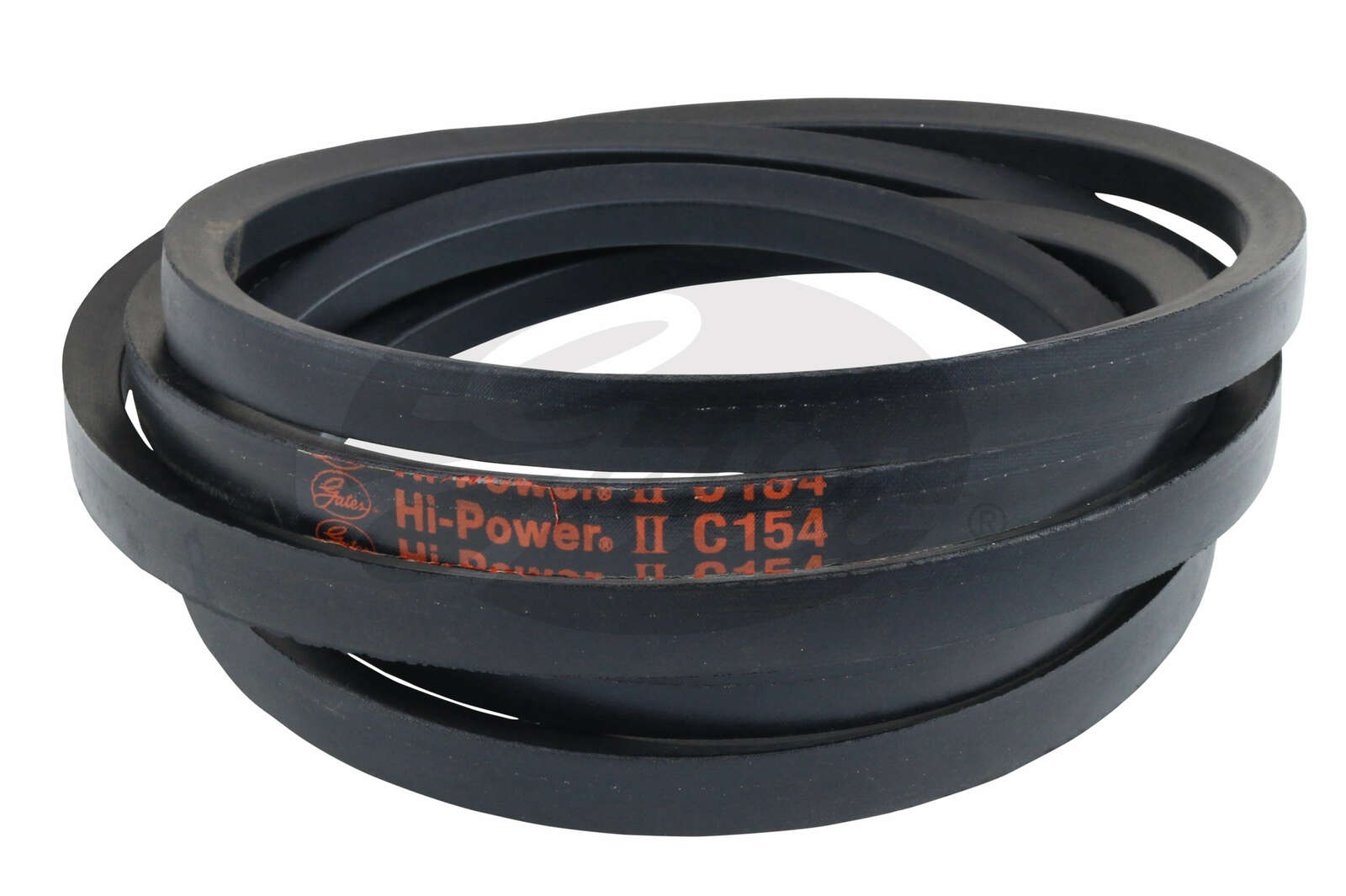

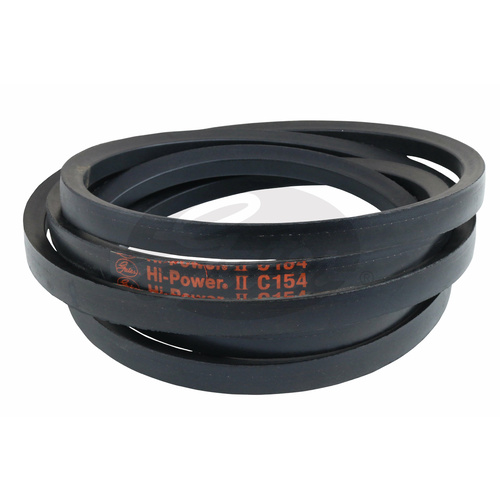

Gates Hi-Power II Classical Wrapped V Belts

• The wrapped classical section Hi-power II V-belt has a big reputation for reliability on agricultural and industrial applications
• Hi-power II are used in applications across all types of industries and markets.
• They are renowned for out- performing and out-lasting competitive belts due to their superior construction.
• Hi-power II belts that last longer lead to less downtime and maintenance and hence produces more uptime

Construction

• Classical cross-section
• Fibre-loaded compound for improved belt stability
• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexin .
• Flex-Weave Cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Advantages

• Premium performance
• Oil and heat resistant
• Excellent performance/cost ratio
• Suitable for dirty/dusty environments
• Match free system: all sizes meet Gates V80 tolerances, can be installed without matching
• Back idlers can be used
• Tolerates mild clutching or drive slip

Temperature Range

• Range: -35°C to +60°C
