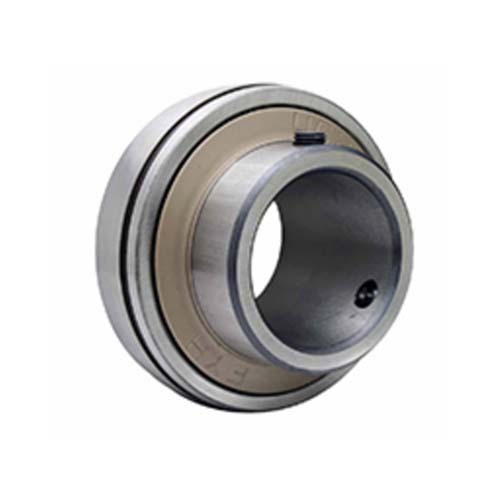

FYH Wide Inner Ring Bearing UC212 with Grub Screw 60 x 110mm

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

Wide Inner Ring Bearing w/ Grub Screw - Metric

Ball bearing insert.
Cylindrical bore with grub screw.

About Wide Inner Ring Bearing

Commonly used ball bearings designed for installation into the corresponding wide inner ring housings.
This range is well known for its versatility between bearing and housing options as well as ease of installation.
Wide inner ring insert bearings also distributes the load over the larger surface area created by the wider inner ring.
These bearings are generally used for heavier duty applications.

Specifications

AIMS SKU A0156853

Brand FYH

Model Number UC212/FYH

Outside Diameter 110 mm

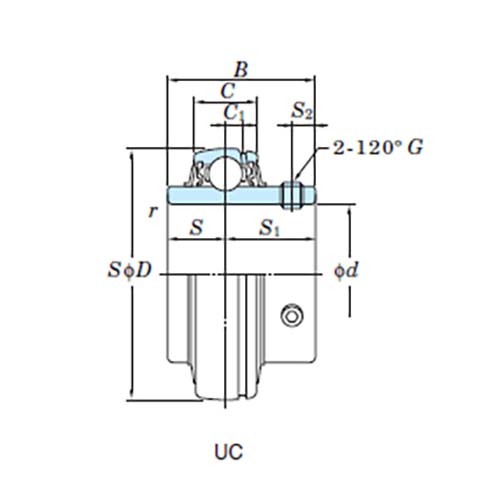

B (in) 2.563

Set Screw Brg. Bore G (mm) M10 x 1.25

S2 (in) 0.413

S1 (in) 1.563

S (in) 1

Basic Load Rating C0r (kn) 36.2

Basic Load Rating Cr (kn) 52.4

R Min (in) 0.059

R Min (mm) 1.5

Factor f0 14.4

C (in) 1.063

C1 (in) 0.295

D (in) 4.331

Bore Diameter 60 mm

Width 65.1 mm

D (mm) 110

b (mm) 65.1

S2 (mm) 10.5

S1 (mm) 39.7

S (mm) 25.4

C1 (mm) 7.5

C (mm) 27

Shaft Diameter (mm) 60

Type Ball Bearing
System of Measurement Metric
Series UC200
