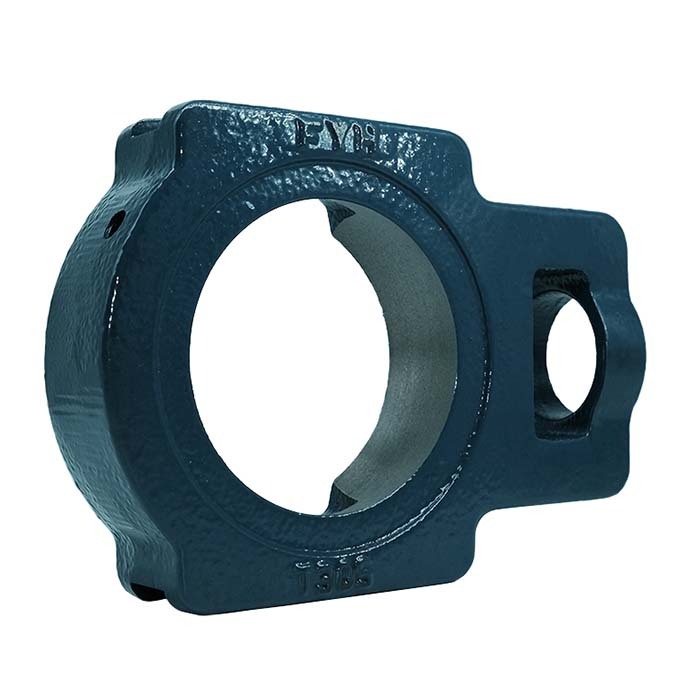

FYH Take-Up Bearing Housing - T300 Series

Take-up type.
T300 series.

About FYH Strength Housing

FYH bearings can withstand very high loads due to the use of only high quality material and excellent design.
However, when high static or impact loads are encountered, the load capacity of the bearing must be determined.
The housing design is such that it can withstand loads from any angle; however the bearing is strongest with a direct downward load through the base of the unit.
For loads in other directions, the allowable load must be determined specifically for the direction in question.
Rigidity of the base and flatness of the mounting surface also influence the housing strength.
The equipment designer or installer must examine and perform calculations for the complete supporting structure of the bearing.

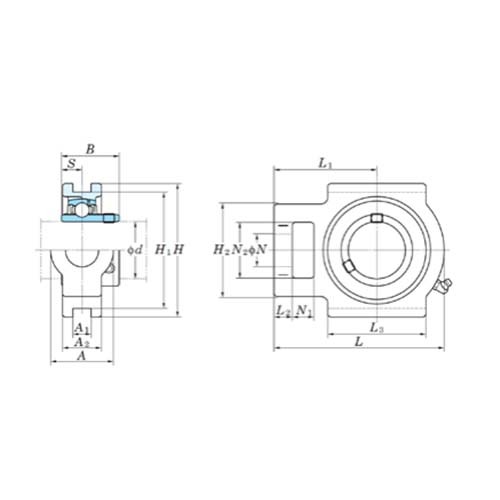

Specifications

AIMS SKU A0202744

Brand FYH

Model Number T314/FYH

Dimension B (in) 3.071

Dimension N2 (in) 3 11/32

Dimension N2 (mm) 85

Dimension L3 (in) 5 1/2

Dimension L3 (mm) 140

Dimension L2 (in) 31/32

Dimension L2 (mm) 25

Dimension L1 (in) 6 3/32

Dimension L1 (mm) 155

Dimension H2 (in) 5 1/8

Dimension H2 (mm) 130

Dimension H1 (in) 7 3/32

Dimension H1 (mm) 180

Dimension N1 (in) 1 13/32

Dimension N1 (mm) 36

Dimension H (in) 7 15/16

Dimension A (mm) 90

Dimension A2 (in) 2 1/16

Dimension A2 (mm) 52

Dimension A1 (in) 1 1/32

Dimension A1 (mm) 26

Dimension N (in) 1 13/16

Dimension N (mm) 46

Dimension A (in) 3 17/32

Dimension L (in) 9 29/32

Shaft Diameter (d) 78mm (3.071")

Dimension L (mm) 252

Dimension H (mm) 202

Bolt Size (inch) 1.299

Bolt Size (mm) 33

Dimension B (mm) 78

Type Bearing Housing
