Specifications

AIMS SKU A0147989
Brand FYH
Model Number T215/FYH

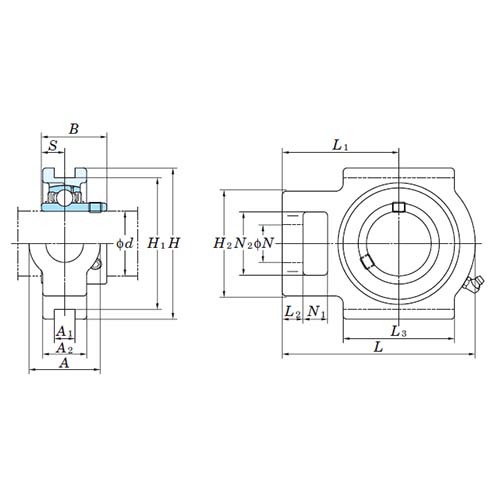

L1 (mm) 140
Factor Fo 14.5
Shaft Diameter (d) 75mm (2 15/16 - 3")
Shaft Diameter d (mm) 75
Static Load (c0r) kN 48.3
Dynamic Load (cr) kN 67.4
N2 (mm) 70
N1 (mm) 32
N (mm) 41
H1 (mm) 151
A2 (mm) 48
L (mm) 232
h2 (mm) 111
H (mm) 167
b (mm) 77.8
A (mm) 70
S (mm) 33.3
L3 (mm) 121
A1 (mm) 26
L2 (mm) 21

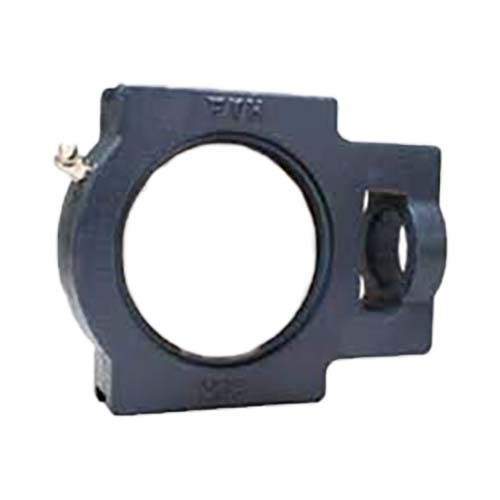

• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Light Take-Up Block
