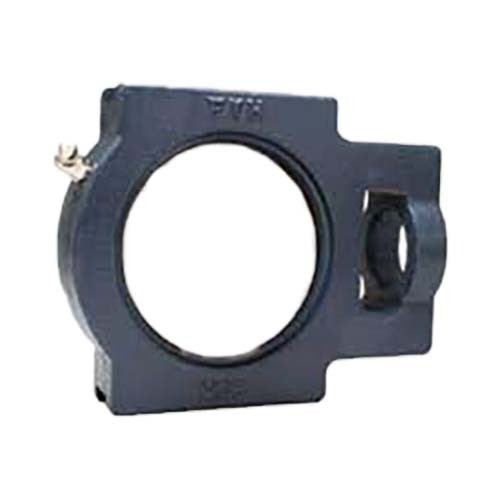

FYH T213 Light Take-Up Block Bearing Housing Suits 65mm (2 1/2") Shaft

Description

Wide Inner Ring Housings (Light Take-Up Block Bearing Housing)

T200 series light take-up block, two slide grooves tensioning cast iron take-up block housing.
Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147985

Brand FYH

Model Number T213/FYH

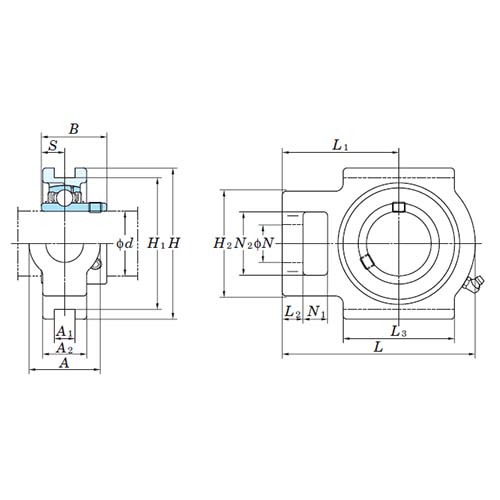

L1 (mm) 137

h2 (mm) 111

Shaft Diameter (d) 65mm (2 1/2")

Shaft Diameter d (mm) 65

N2 (mm) 70

N1 (mm) 32

N (mm) 41

H1 (mm) 151

A2 (mm) 44

L (mm) 224

H (mm) 167

b (mm) 65.1

A (mm) 70

S (mm) 25.4

L3 (mm) 121

A1 (mm) 26

L2 (mm) 21

Type Bearing Housing
System of Measurement Metric/Imperial
Material Cast Iron
Item Type Light Take-Up Block
