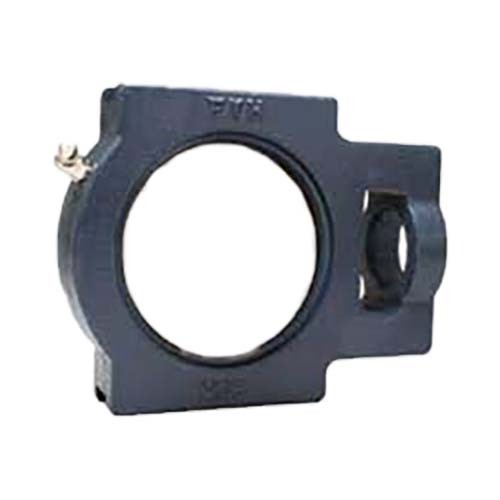

FYH T212 Light Take-Up Block Bearing Housing Suits 60mm (2 1/4 - 2 7/16") Shaft

Description

Wide Inner Ring Housings (Light Take-Up Block Bearing Housing)

T200 series light take-up block, two slide grooves tensioning cast iron take-up block housing.
Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147981

Brand FYH

Model Number T212/FYH

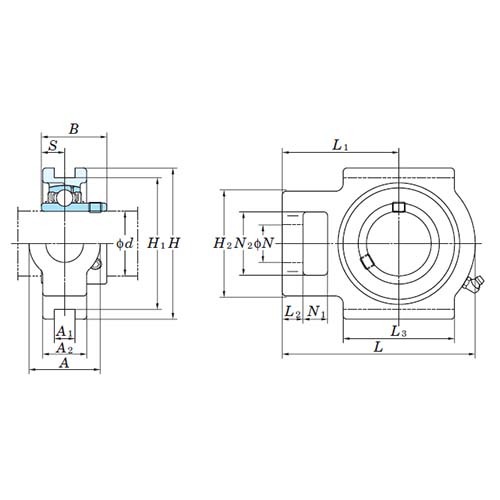

L1 (mm) 119

h2 (mm) 102

Shaft Diameter (d) 60mm (2 1/4 - 2 7/16")

Shaft Diameter d (mm) 60

N2 (mm) 64

N1 (mm) 32

N (mm) 35

H1 (mm) 130

A2 (mm) 42

L (mm) 194

H (mm) 146

b (mm) 65.1

A (mm) 64

S (mm) 25.4

L3 (mm) 102

A1 (mm) 22

L2 (mm) 19

Type Bearing Housing
System of Measurement Metric/Imperial
Material Cast Iron
Item Type Light Take-Up Block
