Specifications

AIMS SKU A0147961
Brand FYH
Model Number T206/FYH

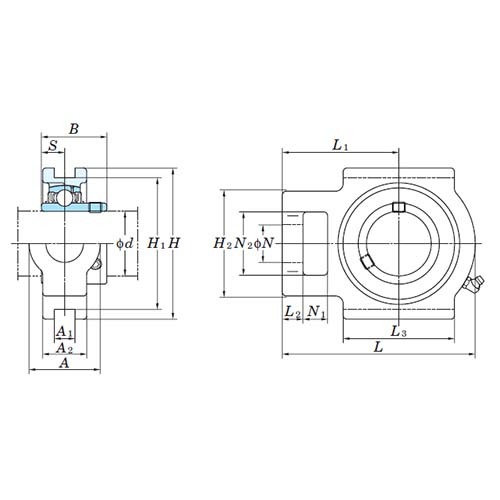

L1 (mm) 70
Factor Fo 13.9
Shaft Diameter (d) 30mm (1 1/8 - 1 1/4")
Shaft Diameter d (mm) 30
Static Load (c0r) kN 11.3
Dynamic Load (cr) kN 19.5
N2 (mm) 37
N1 (mm) 16
N (mm) 22
H1 (mm) 89
A2 (mm) 28
L (mm) 113
h2 (mm) 56
H (mm) 102
b (mm) 38.1
A (mm) 37
S (mm) 15.9
L3 (mm) 57
A1 (mm) 12
L2 (mm) 10

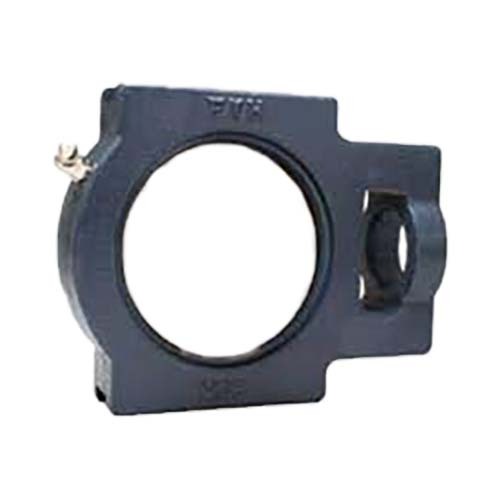

• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Light Take-Up Block
