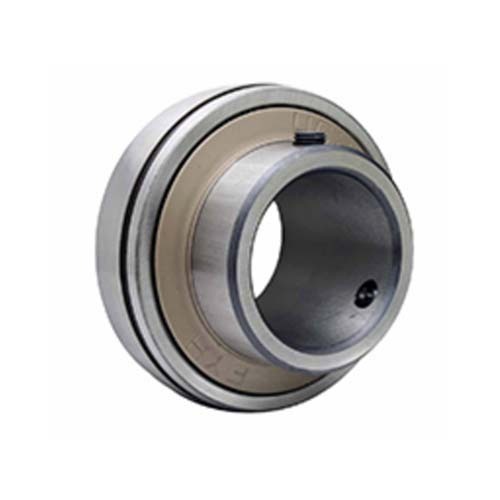

FYH Stainless Steel Wide Inner Ring Bearing w/ Grub Screw (UC209-28S6) 1 3/4"

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

Stainless Steel Wide Inner Ring Bearing Cylindrical Bore w/ Grub Screw - Imperial

Ball bearing insert.
Stainless Steel.
Cylindrical Bore w/ Grub Screw.

About Wide Inner Ring Bearing

Commonly used ball bearings designed for installation into the corresponding wide inner ring housings.
This range is well known for its versatility between bearing and housing options as well as ease of installation.
Wide inner ring insert bearings also distributes the load over the larger surface area created by the wider inner ring.
These bearings are generally used for heavier duty applications.

Specifications

AIMS SKU A0156922

Brand FYH

Model Number SSUC209-28/FYH

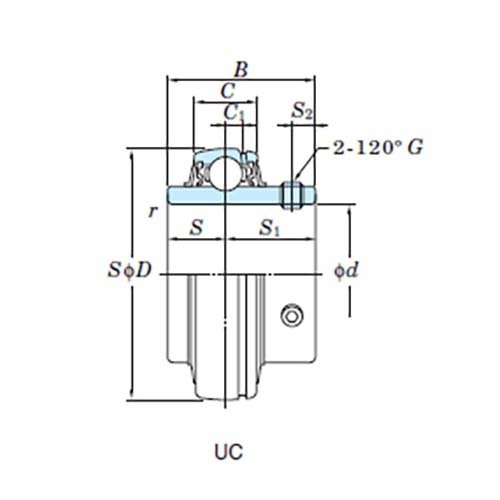

C1 (in) 0.236

Set Screw Brg. Bore G (in) 5/16-24UNF

Set Screw Brg. Bore G (mm) ?

S2 (in) 0.315

S1 (in) 1.189

S (in) 0.748

Basic Load Rating C0r (kn) 21.3

Basic Load Rating Cr (kn) 34.1

R Min (in) 0.043

R Min (mm) 1.1

Factor f0 14

C (in) 0.866

C (mm) 22

B (in) 1.937

D (in) 3.346

Bore Diameter 1 3/4 in

Shaft Diameter (in) 1 3/4

D (mm) 85

b (mm) 49.2

S2 (mm) 8

S1 (mm) 30.2

S (mm) 19

C1 (mm) 6

Type Ball Bearing
System of Measurement Imperial
Material Stainless Steel
