Specifications
- AIMS SKU A0156917
- Brand FYH
- Model Number SSUC205-16/FYH
- C1 (in) 0.197
- Set Screw Brg. Bore G (in) 1/4-28UNF
- Set Screw Brg. Bore G (mm) ?
- S2 (in) 0.217
- S1 (in) 0.78
- S (in) 0.563
- Basic Load Rating C0r (kn) 7.85
- Basic Load Rating Cr (kn) 14
- R Min (in) 0.039
- R Min (mm) 1
- Factor f0 13.9
- C (in) 0.669
- C (mm) 17
- B (in) 1.343
- D (in) 2.047
- Bore Diameter 1 in
- Shaft Diameter (in) 1
- D (mm) 52
- b (mm) 34.1
- S2 (mm) 5.5
- S1 (mm) 19.8
- S (mm) 14.3
- C1 (mm) 5
- Type Ball Bearing
- System of Measurement Imperial
- Material Stainless Steel
SKU: A0156917

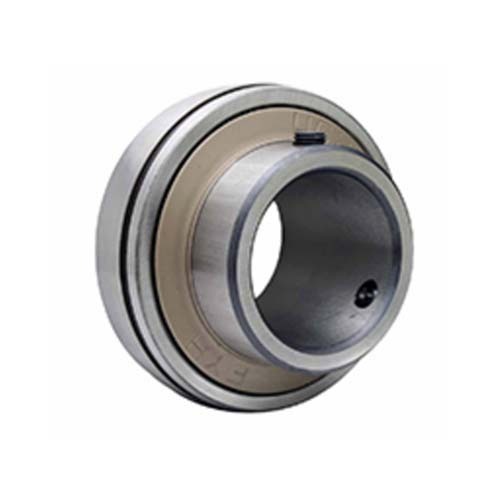

FYH Stainless Steel Wide Inner Ring Bearing w/ Grub Screw (UC205-16S6) 1"
Stainless Steel Wide Inner Ring Bearing w/ Grub Screw
$89.13
