Specifications

AIMS SKU A0147870
Brand FYH
Model Number PX09/FYH

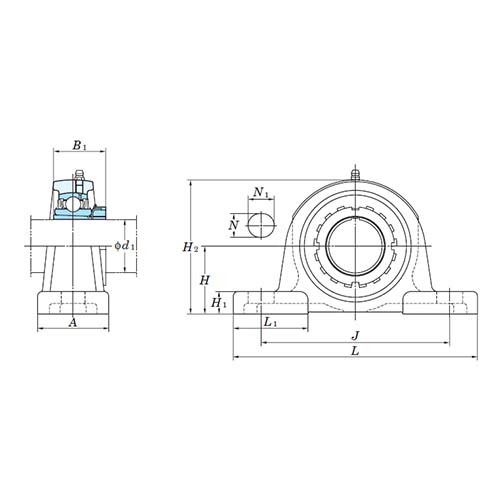

L1 (mm) 71
Bolt Size (mm) M16
Shaft Diameter (d) 45mm (1 3/4")
Shaft Diameter d (mm) 45
Static Load (c0r) kN 23.3
Dynamic Load (cr) kN 35.1
N1 (mm) 33
N (mm) 20
J (mm) 156
H1 (mm) 21
Factor Fo 14.4
L (mm) 222
h2 (mm) 116
H (mm) 58.7
b (mm) 51.6
A (mm) 67
S (mm) 19
• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Medium Pillow Block
