Description

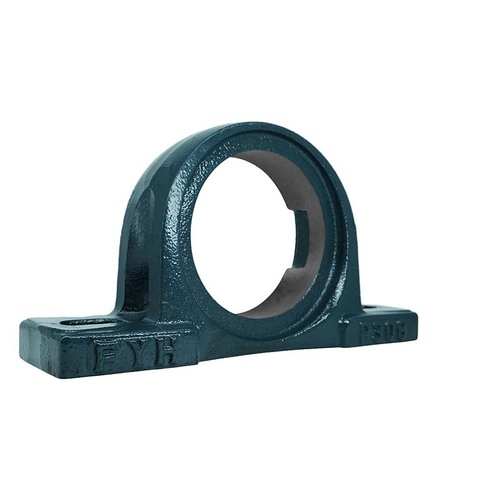

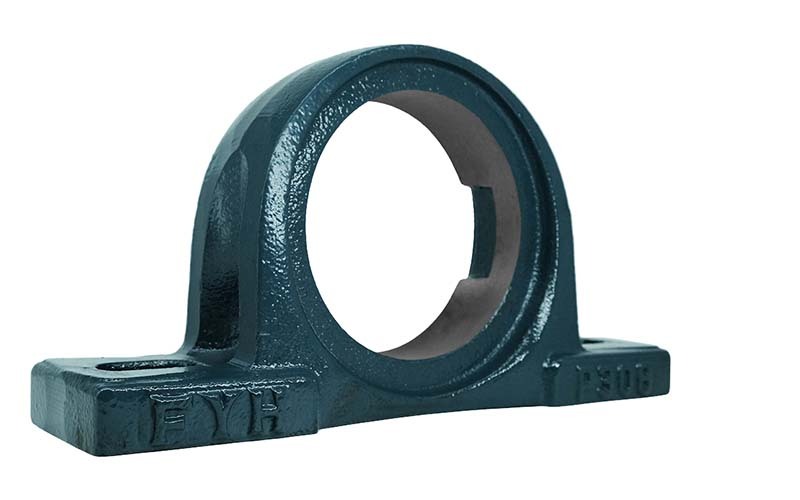

FYH Pillow Block Bearing Housing - P300 Series

Pillow type.
P300 series.

About FYH Strength Housing

FYH bearings can withstand very high loads due to the use of only high quality material and excellent design.
However, when high static or impact loads are encountered, the load capacity of the bearing must be determined.
The housing design is such that it can withstand loads from any angle; however the bearing is strongest with a direct downward load through the base of the unit.
For loads in other directions, the allowable load must be determined specifically for the direction in question.
Rigidity of the base and flatness of the mounting surface also influence the housing strength.
The equipment designer or installer must examine and perform calculations for the complete supporting structure of the bearing.

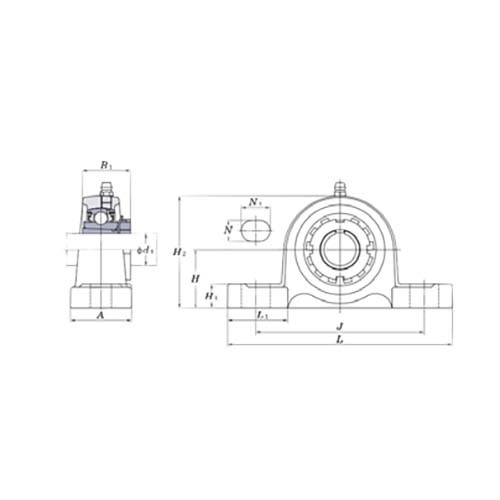

Specifications

AIMS SKU A0202730

Brand FYH

Model Number P320/FYH

Dimension N (mm) 36

Dimension L1 (in) 5 1/2

Dimension L1 (mm) 140

Dimension H2 (in) 10 3/4

Dimension H2 (mm) 273

Dimension H1 (in) 1 13/16

Dimension H1 (mm) 46

Dimension N1 (in) 1 31/32

Dimension N1 (mm) 50

Dimension H (in) 5 33/64

Dimension S (in) 1.654

Dimension B (in) 4.252

Dimension N (in) 1 13/32

Dimension A (mm) 120

Dimension J (in) 14 31/32

Dimension J (mm) 380

Dimension A (in) 4 23/32

Dimension L (in) 19 9/32

Shaft Diameter (d) 108mm (4.252")

Dimension L (mm) 490

Dimension S (mm) 42

Dimension H (mm) 140

Bolt Size (inch) 1 1/8

Bolt Size (mm) M30

Dimension B (mm) 108

Type Bearing Housing
