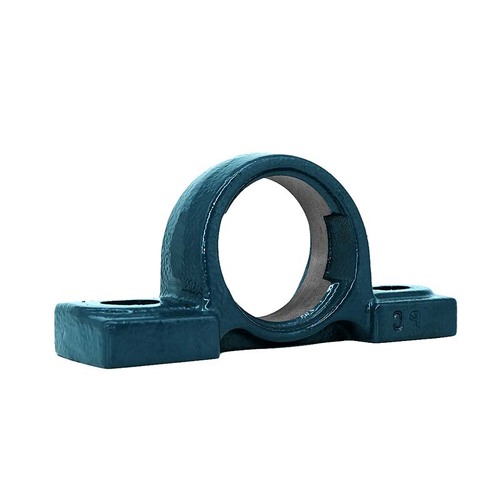

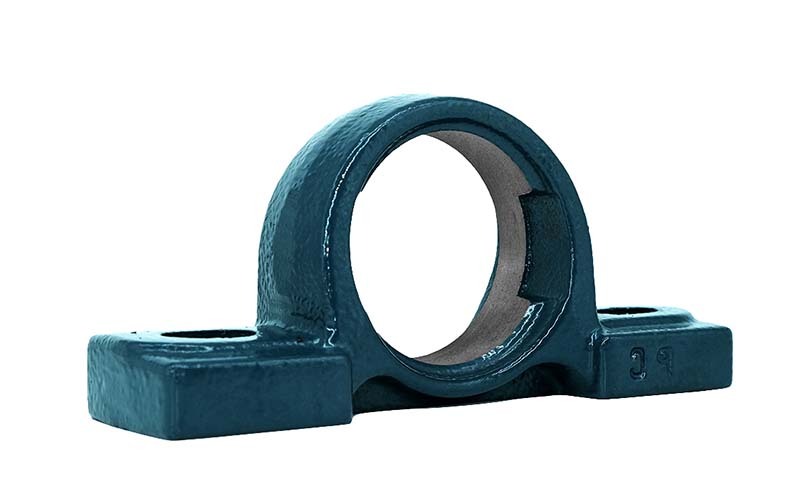

FYH P216 Light Pillow Block Bearing Housing Suits 80mm (3 1/8") Shaft

Description

Wide Inner Ring Housings (Light Pillow Block Bearing Housing)

P200 series light pillow blocks, two-bolt hole foot mounted cast iron pedestal housing.
Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

AIMS SKU A0147854

Brand FYH

Model Number P216/FYH

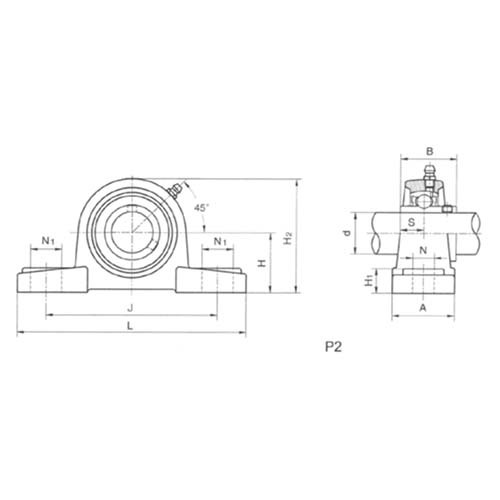

L1 (mm) 86

S (mm) 33.3

A (mm) 78

b (mm) 82.6

H (mm) 88.9

h2 (mm) 174

L (mm) 292

Bolt Size (mm) M20

H1 (mm) 32

J (mm) 232

N (mm) 25

N1 (mm) 35

Shaft Diameter d (mm) 80

Shaft Diameter (d) 80mm (3 1/8")

Type Bearing Housing
System of Measurement Metric/Imperial
Material Cast Iron
Item Type Light Pillow Block

Calculate Shipping

Resources

Technical Data Sheet
