Specifications

AIMS SKU A0147819
Brand FYH
Model Number P206/FYH

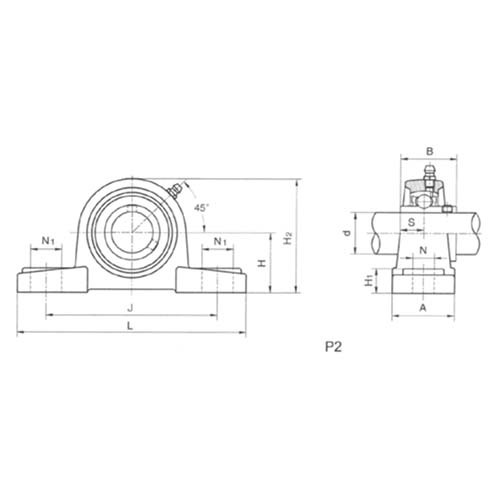

L1 (mm) 53
Bolt Size (mm) M14
Shaft Diameter (d) 30mm (1 1/8 - 1 1/4")
Shaft Diameter d (mm) 30
Static Load (c0r) kN 11.3
Dynamic Load (cr) kN 19.5
N1 (mm) 21
N (mm) 17
H1 (mm) 15
A0 (mm) 165
Factor Fo 13.9
L (mm) 165
h2 (mm) 84
H (mm) 42.9
b (mm) 38.1
A (mm) 48
S (mm) 15.9
A1 (mm) 121
• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron

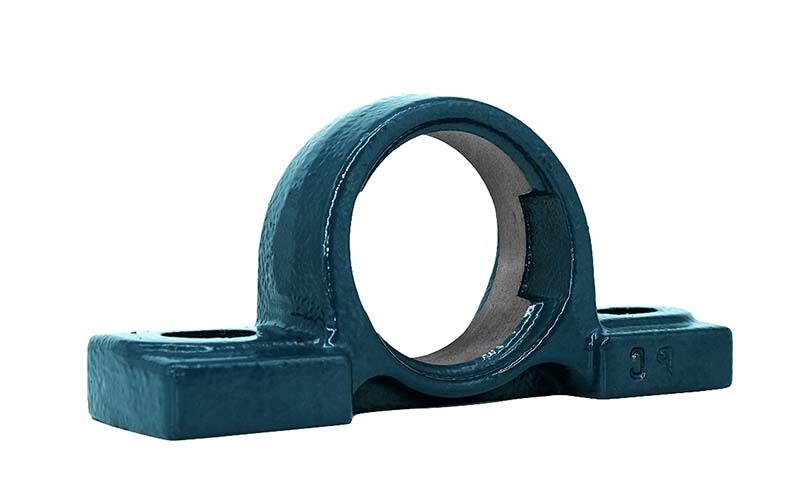

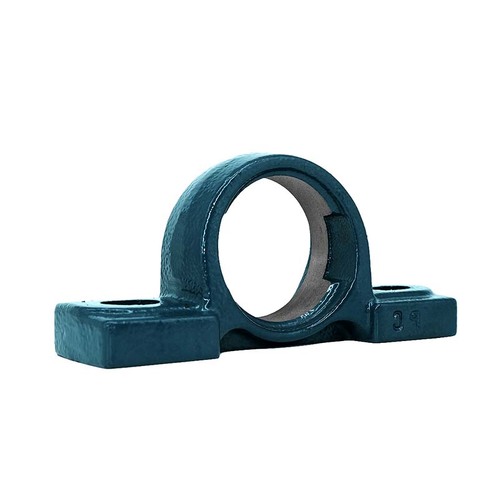

• Item Type Light Pillow Block
