Specifications
- AIMS SKU A0156839
- Brand FYH
- Model Number UC324/FYH

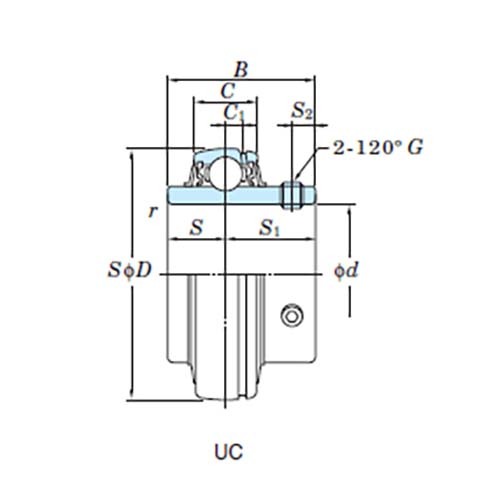

- Outside Diameter 260 mm
- B (in) 4.961
- Set Screw Brg. Bore G (mm) M18 x 1.5
- S2 (in) 0.787
- S1 (in) 2.953
- S (in) 2.008
- Basic Load Rating C0r (kn) 185
- Basic Load Rating Cr (kn) 207
- R Min (in) 0.118
- R Min (mm) 3
- Factor f0 13.5
- C (in) 2.52
- C1 (in) 0.827
- D (in) 10.236
- Bore Diameter 120 mm
- Width 126 mm
- D (mm) 260
- b (mm) 126
- S2 (mm) 20
- S1 (mm) 75
- S (mm) 51
- C1 (mm) 21
- C (mm) 64
- Shaft Diameter (mm) 120
- Type Ball Bearing
- System of Measurement Metric
- Series UC300
SKU: A0156839

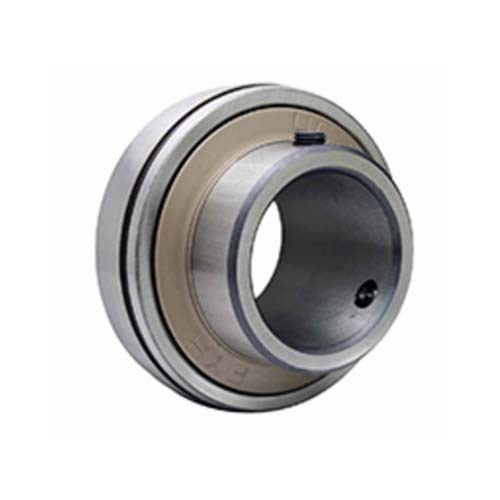

FYH Heavy Wide Inner Ring Bearing UC324 with Grub Screw 120 x 260mm
Heavy Wide Inner Ring Bearing with Grub Screw - Metric
$2,859.75
