Specifications

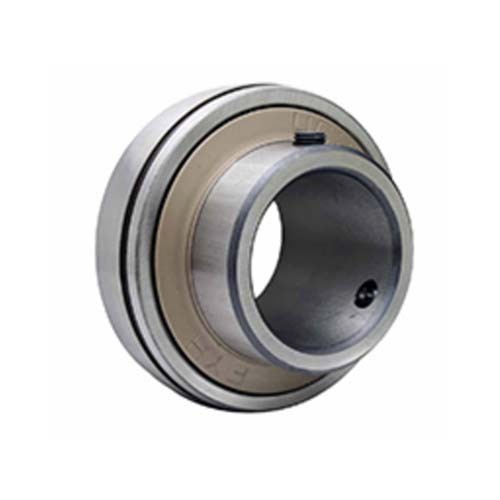

AIMS SKU A0156826
Brand FYH
Model Number UC308/FYH
Outside Diameter 90 mm

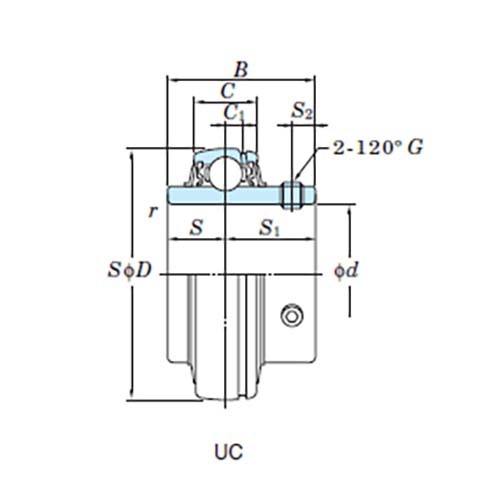

B (in) 2.047
Set Screw Brg. Bore G (mm) M10 x 1.25
S2 (in) 0.394
S1 (in) 1.299
S (in) 0.748
Basic Load Rating C0r (kn) 24
Basic Load Rating Cr (kn) 40.7
R Min (in) 0.059
R Min (mm) 1.5
Factor f0 13.2
C (in) 1.102
C1 (in) 0.315
D (in) 3.543
Bore Diameter 40 mm
Width 52 mm
D (mm) 90
b (mm) 52
S2 (mm) 10
S1 (mm) 33
S (mm) 19
C1 (mm) 8
C (mm) 28
Shaft Diameter (mm) 40
• Type Ball Bearing
• System of Measurement Metric
• Series UC300
