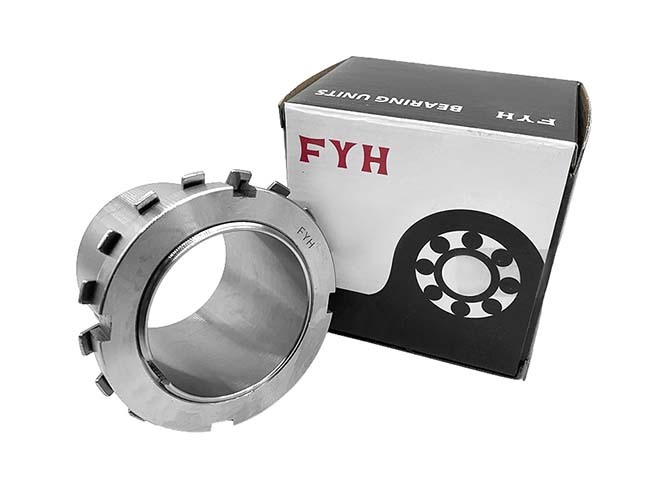

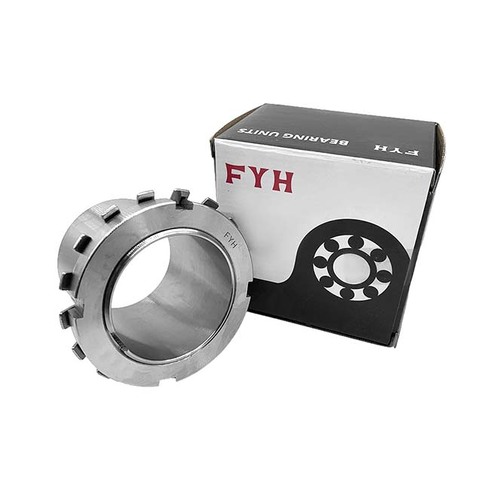

FYH HE317 Bearing Adaptor Sleeve Imperial 3" Bore

Description

FYH HE300 Series Bearing Adapter Sleeve Imperial

Imperial.
Proper assembly of adapter sleeves can create excellent holding power on the shaft.

***Catalogue Dimensions are Reference Only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

Specifications

AIMS SKU A0201362

Brand FYH

Model Number HE317/FYH

Net Weight (kg) 1.1

Bore (inch) 3"

B1 (mm) 63

B2 (mm) 18

(d2) mm 110

Matched Locking Nut AN17

Matched Locking Washer AW17

(d1) in 3"

Type Adaptor Sleeve
System Measurement Imperial
