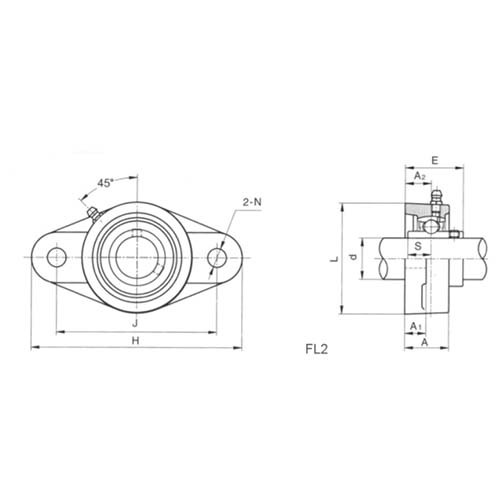

Specifications

AIMS SKU A0147665
Brand FYH
Model Number FL216/FYH
A1 (mm) 20
S (mm) 33.3
A (mm) 58
b (mm) 82.6
H (mm) 290
L (mm) 180
Factor Fo 14.6
Bolt Size (mm) M22
A0 (mm) 83.3
A2 (mm) 34
J (mm) 233
N (mm) 25
Dynamic Load (cr) kN 72.7
Static Load (c0r) kN 53
Shaft Diameter d (mm) 80
Shaft Diameter (d) 80mm (3 1/8")
• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Light Two Bolt Flange
