Specifications

AIMS SKU A0147885
Brand FYH
Model Number FCX07/FYH

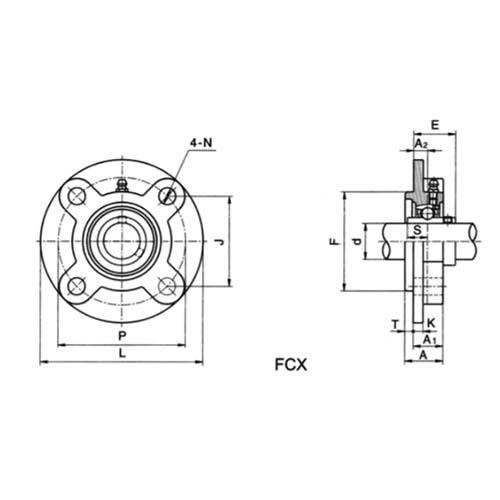

A4 (mm) 39.2
Shaft Diameter (d) 35mm ( 1 3/8 - 1 7/16")
Shaft Diameter d (mm) 35
Static Load (c0r) kN 17.8
Dynamic Load (cr) kN 29.1
N (mm) 12
J1 (mm) 78.5
J (mm) 111
H3 (mm) 92
A1 (mm) 26
A3 (mm) 11
A2 (mm) 9
Bolt Size (mm) M10
Factor Fo 14
L (mm) 133
b (mm) 49.2
S (mm) 19
• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron

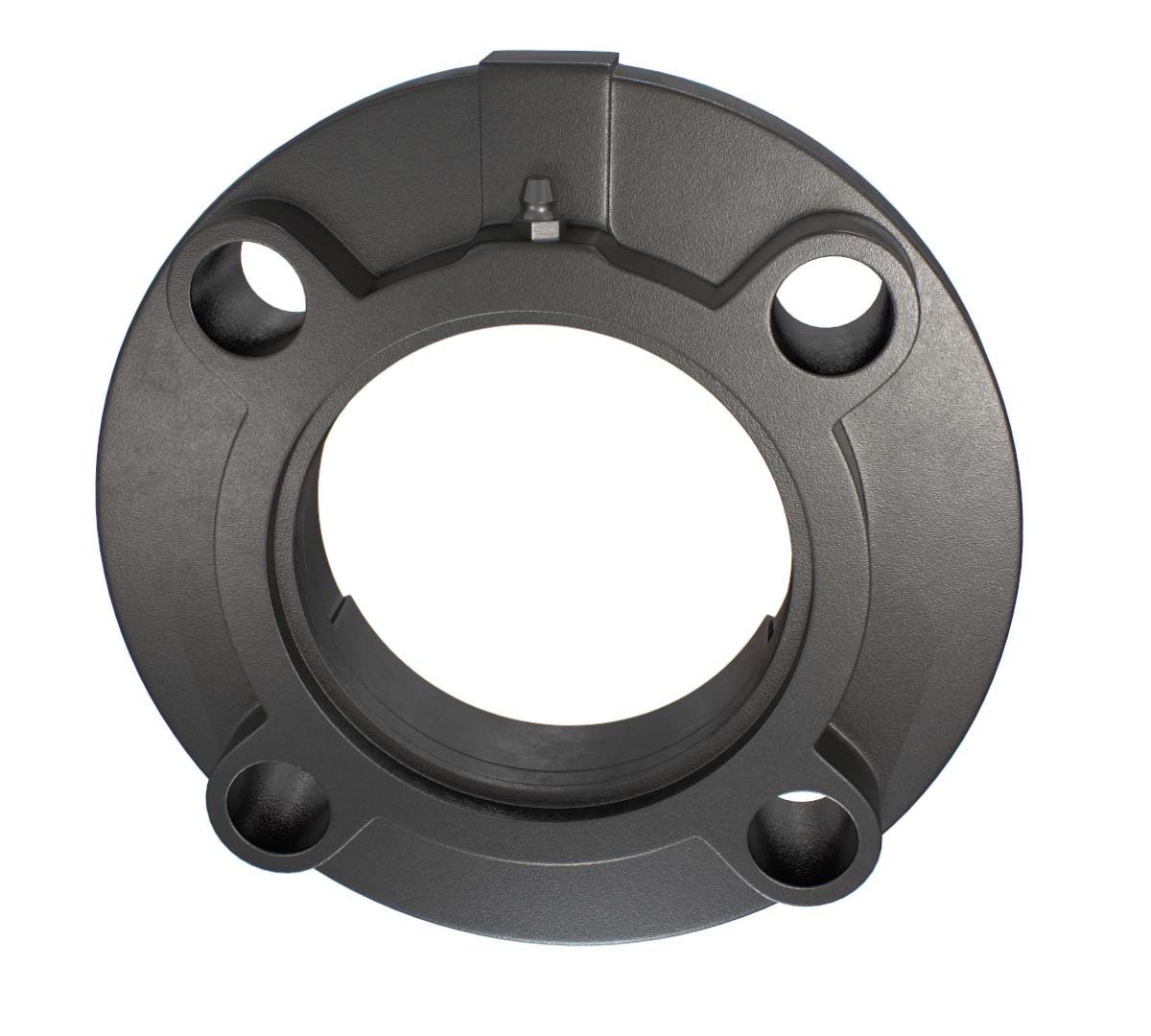

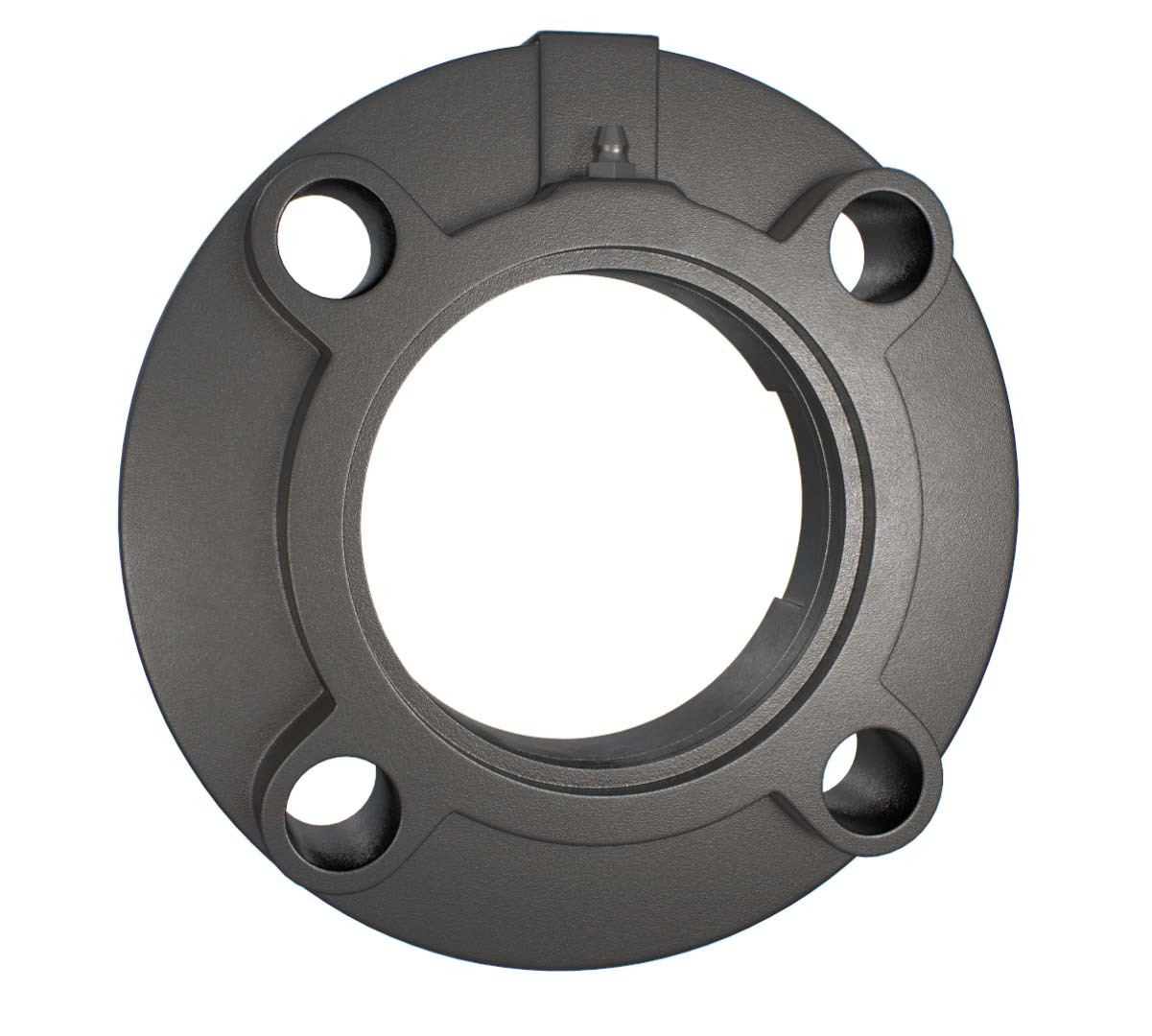

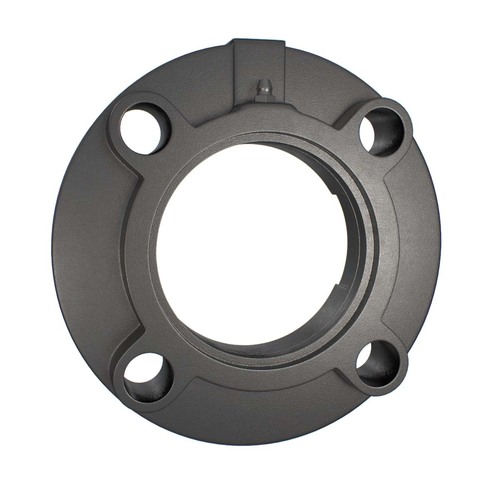

• Item Type Medium Four Bolt Spigotted Flange
