Specifications

AIMS SKU A0147933
Brand FYH
Model Number FC212/FYH

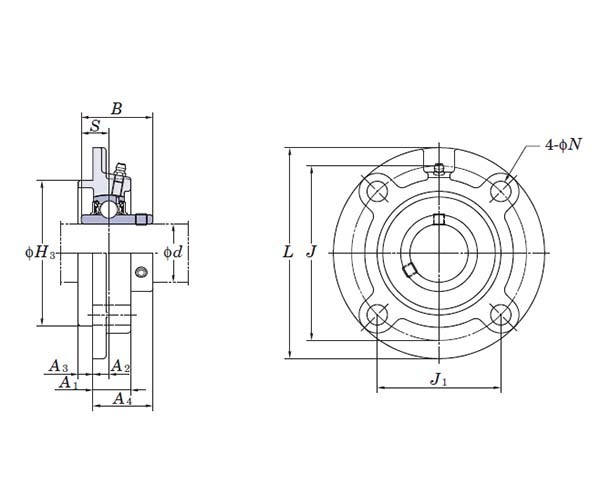

A4 (mm) 56.7
Shaft Diameter (d) 60mm (2 1/4 - 2 7/16")
Shaft Diameter d (mm) 60
Static Load (c0r) kN 36.2
Dynamic Load (cr) kN 52.4
N (mm) 19
J1 (mm) 113.1
J (mm) 160
H3 (mm) 135
A1 (mm) 36
A3 (mm) 12
A2 (mm) 17
Bolt Size (mm) M16
Factor Fo 14.4
L (mm) 195
b (mm) 65.1
S (mm) 25.4

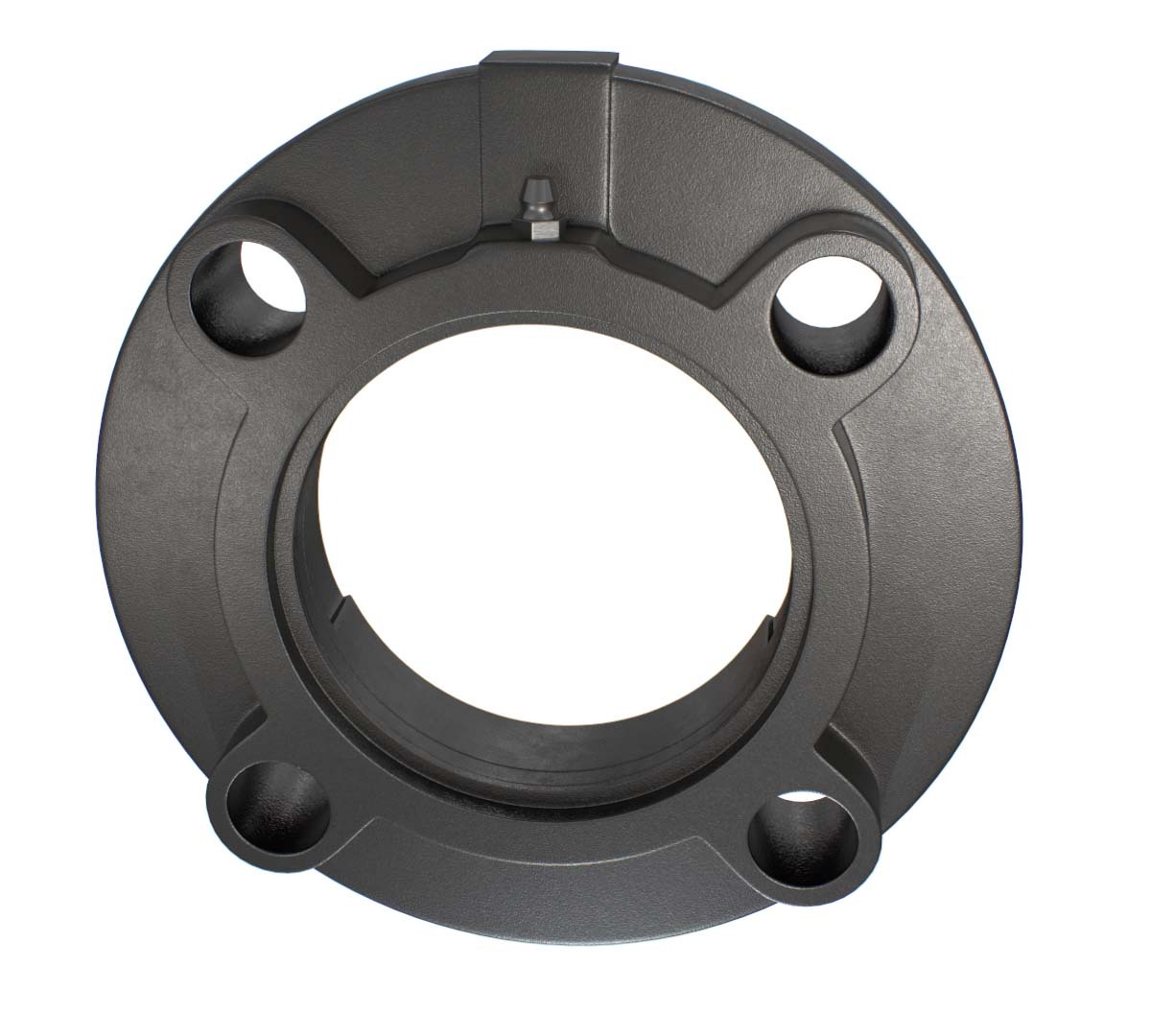

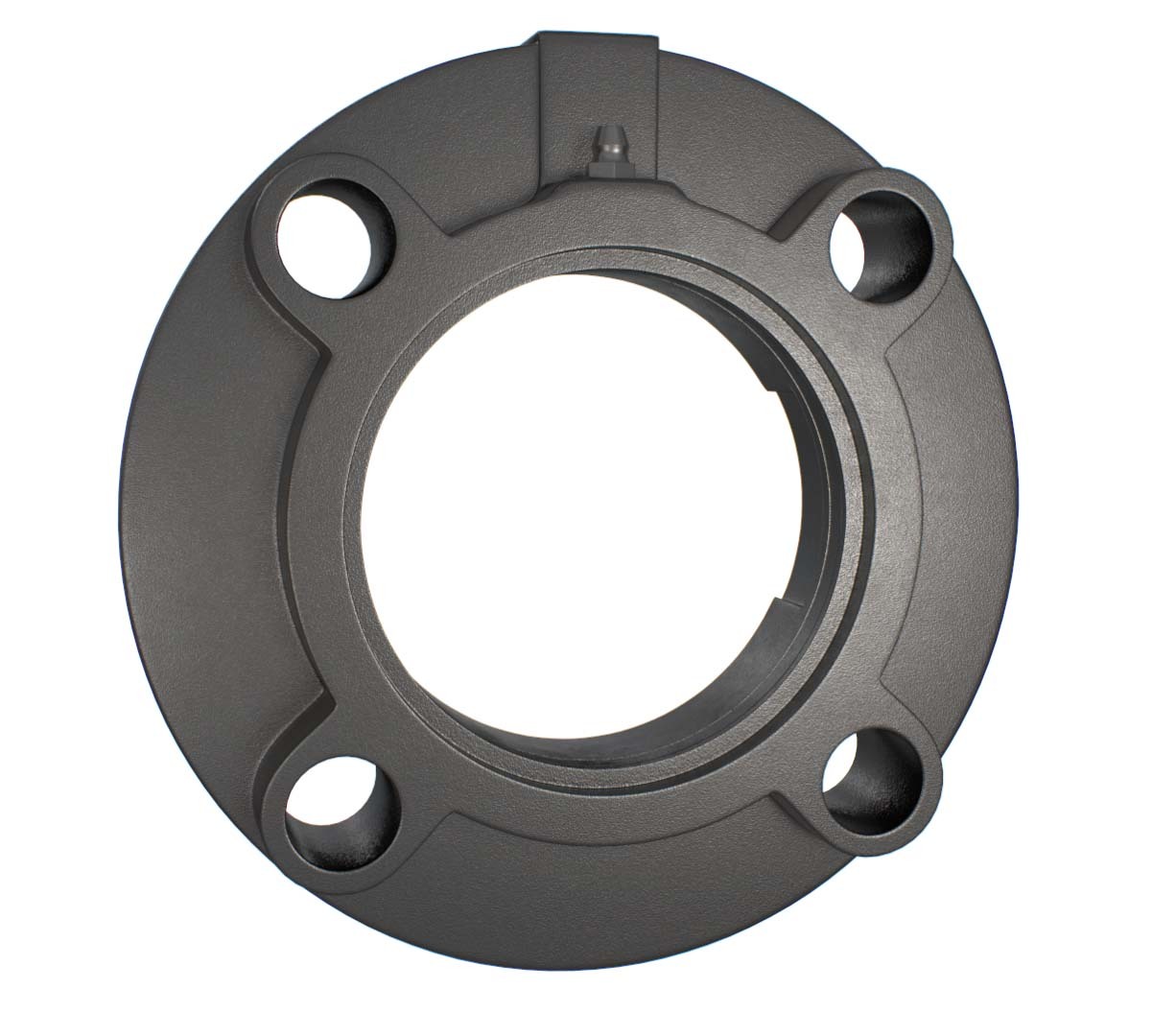

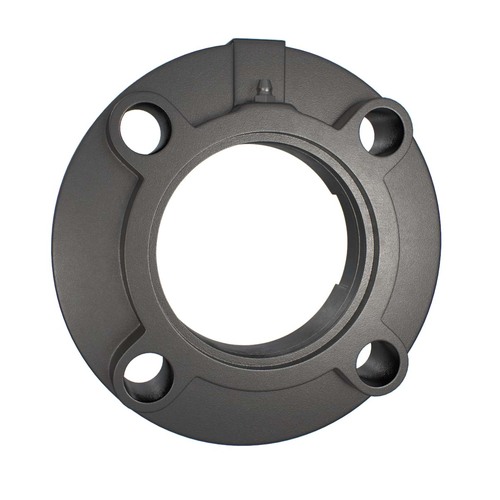

• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Light Four Bolt Spigotted Flange
