Specifications

AIMS SKU A0147926
Brand FYH
Model Number FC210/FYH

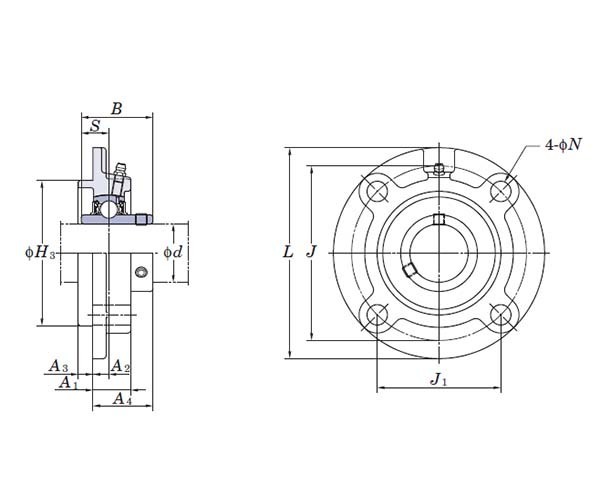

A4 (mm) 42.6
Shaft Diameter (d) 50mm (2 - 1 15/16")
Shaft Diameter d (mm) 50
Static Load (c0r) kN 23.3
Dynamic Load (cr) kN 35.1
N (mm) 16
J1 (mm) 97.6
J (mm) 138
H3 (mm) 110
A1 (mm) 28
A3 (mm) 12
A2 (mm) 10
Bolt Size (mm) M14
Factor Fo 14.4
L (mm) 165
b (mm) 51.6
S (mm) 19

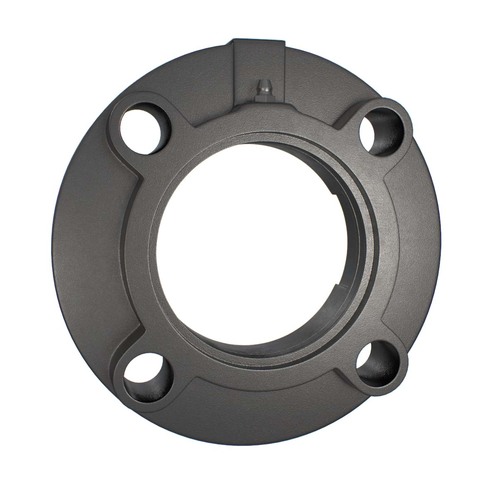

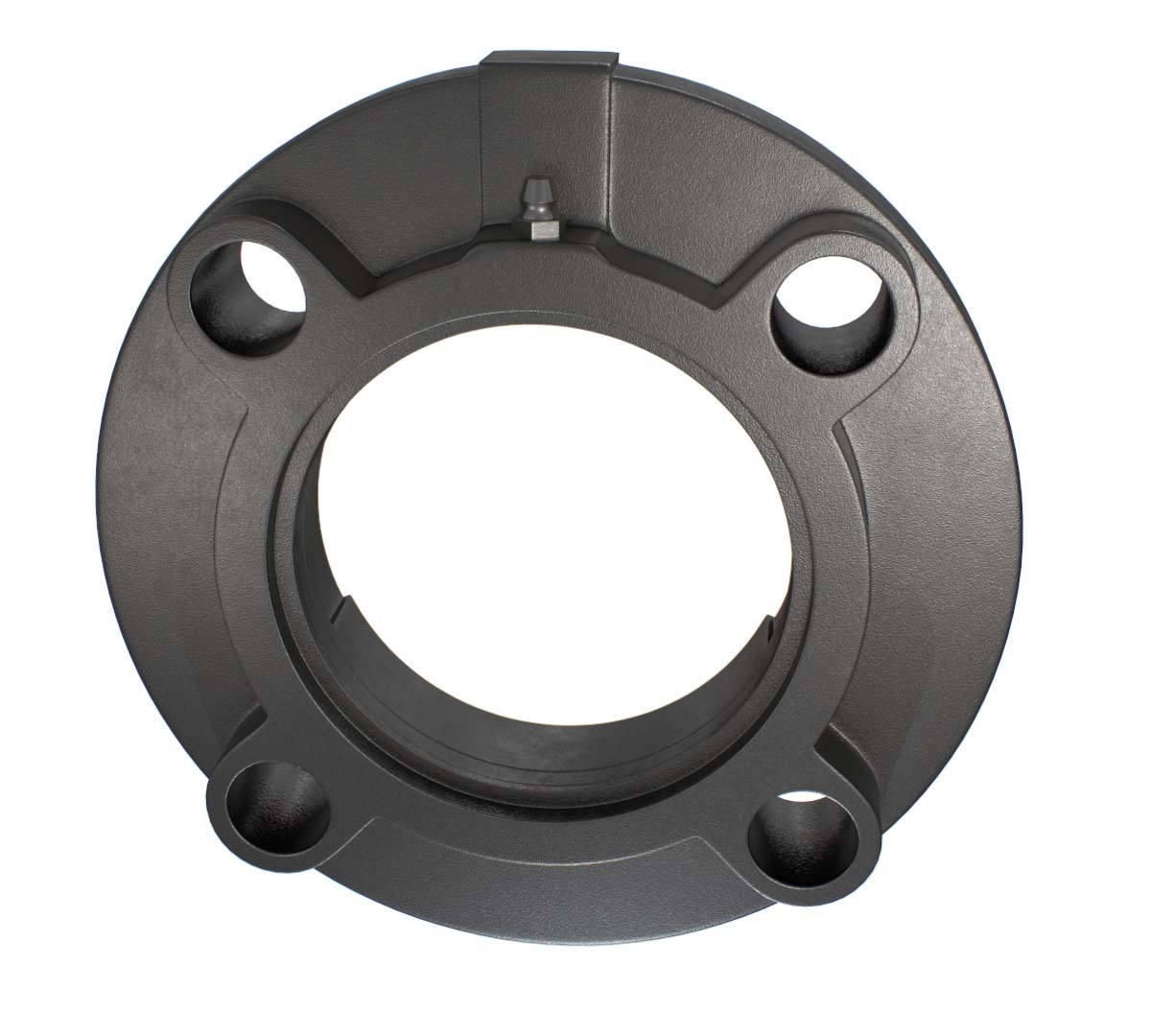

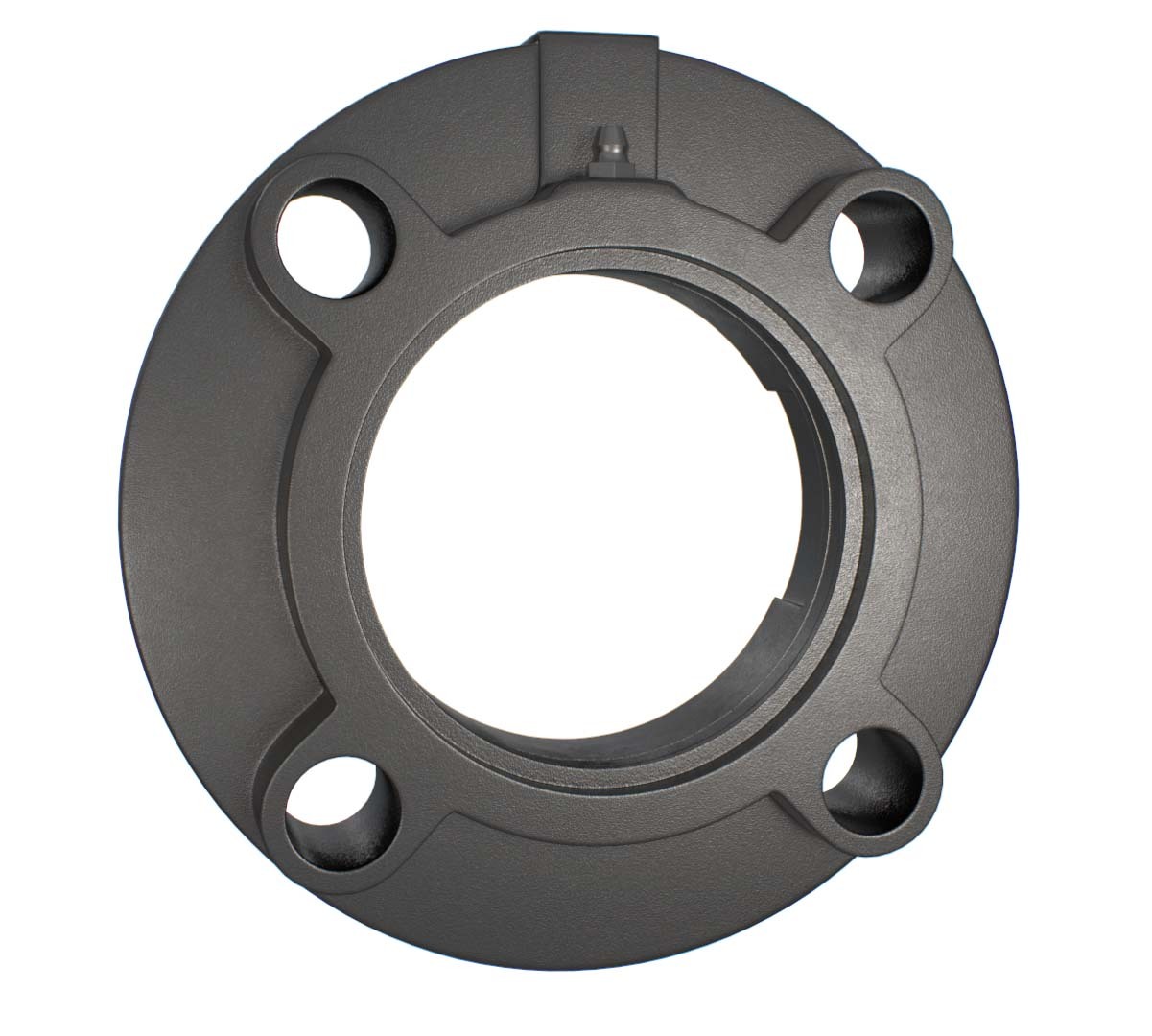

• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Light Four Bolt Spigotted Flange
