Specifications

AIMS SKU A0147919
Brand FYH
Model Number FC208/FYH

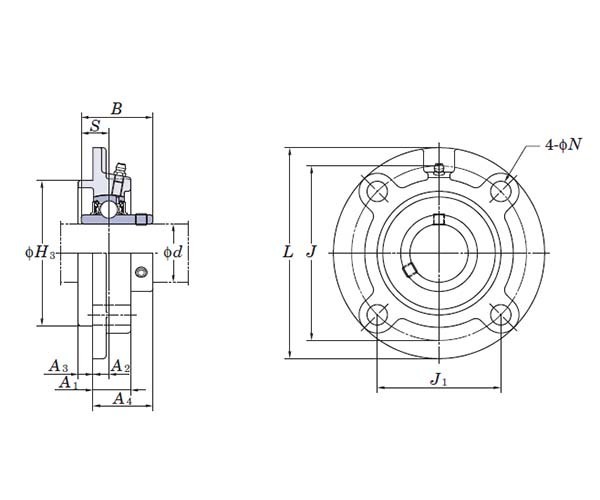

A4 (mm) 41.2
Shaft Diameter (d) 40mm (1 1/2 - 1 9/16")
Shaft Diameter d (mm) 40
Static Load (c0r) kN 17.8
Dynamic Load (cr) kN 29.1
N (mm) 14
J1 (mm) 84.8
J (mm) 120
H3 (mm) 100
A1 (mm) 26
A3 (mm) 10
A2 (mm) 11
Bolt Size (mm) M12
Factor Fo 14
L (mm) 145
b (mm) 49.2
S (mm) 19

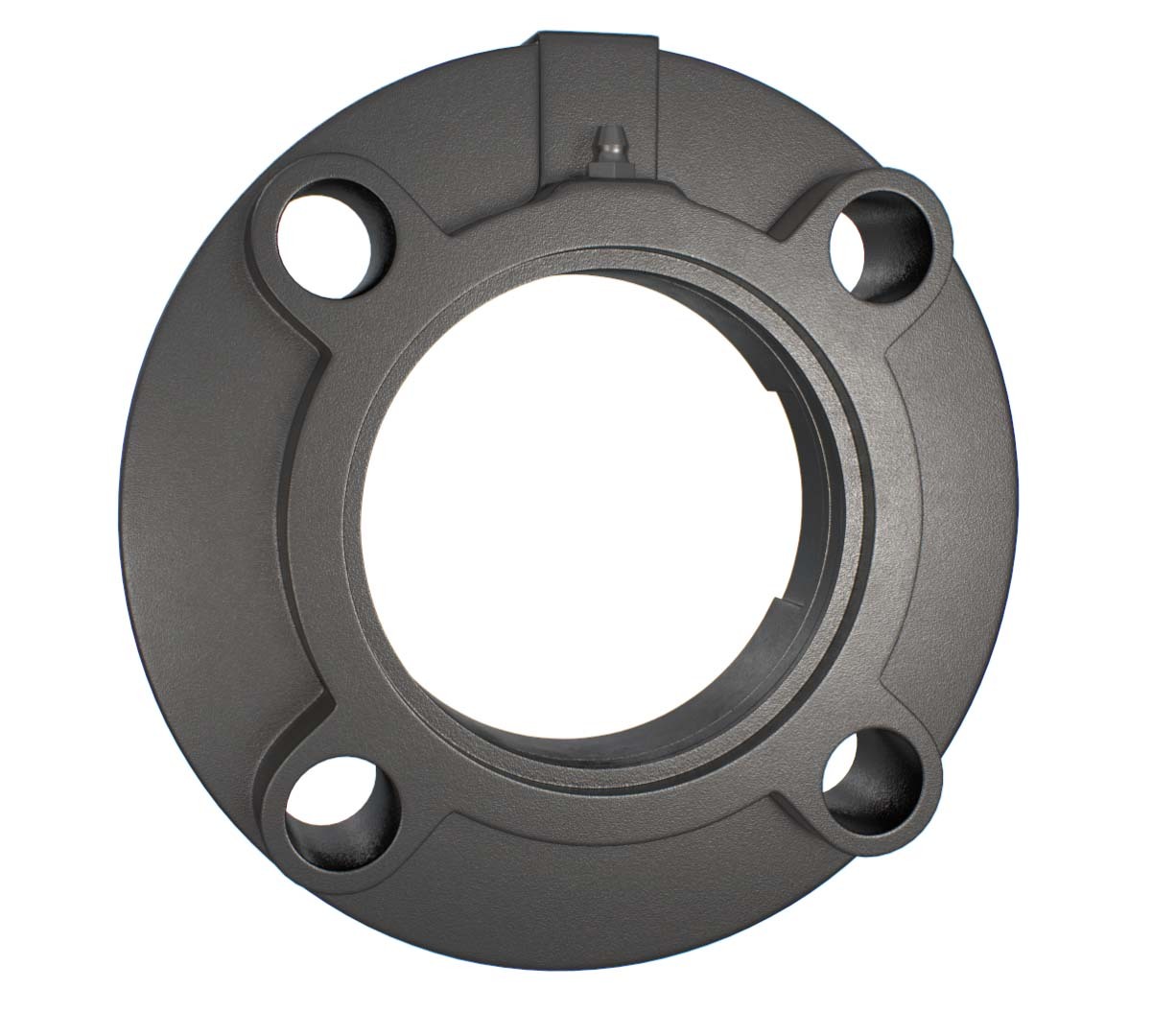

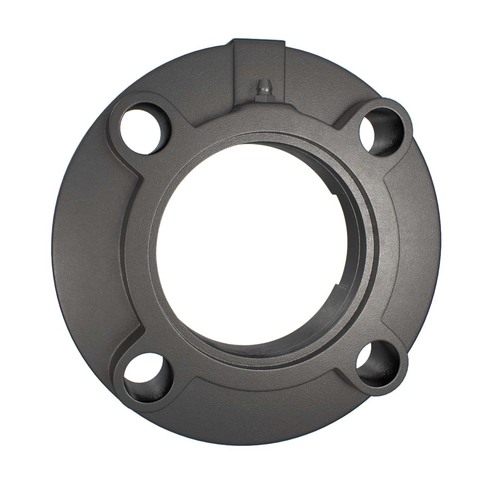

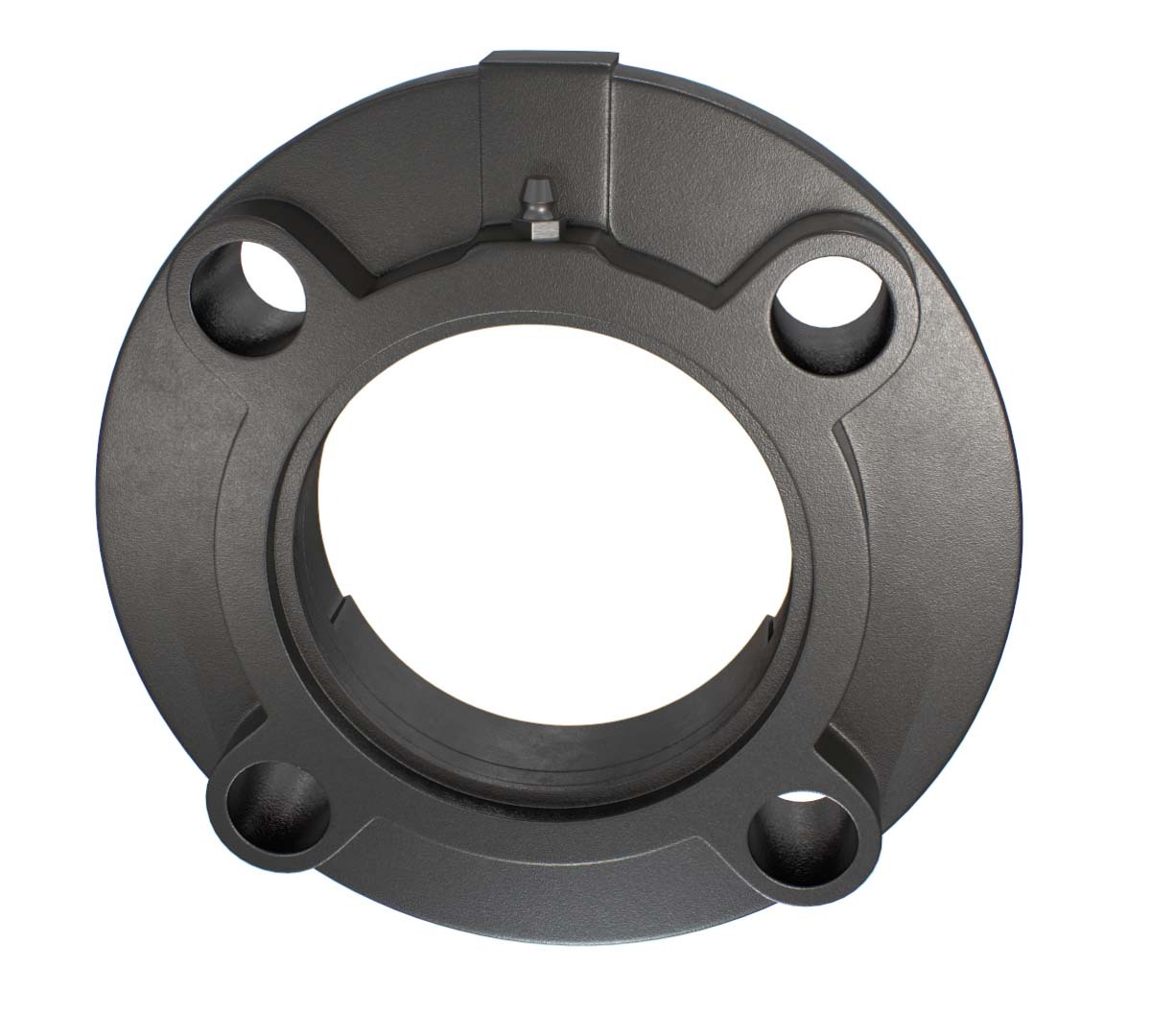

• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Light Four Bolt Spigotted Flange
