Specifications

AIMS SKU A0147915
Brand FYH
Model Number FC207/FYH

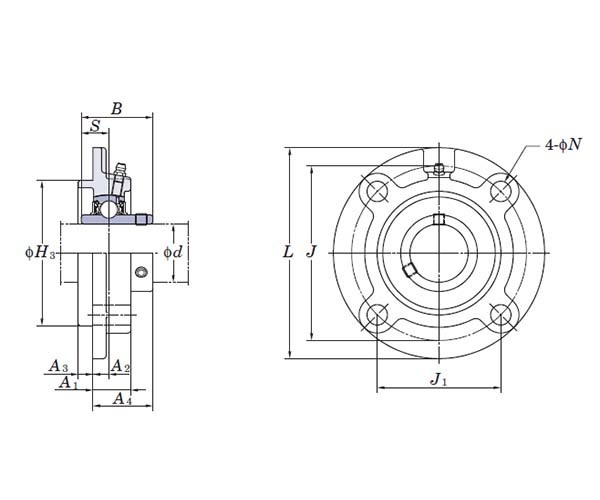

A4 (mm) 36.4
Shaft Diameter (d) 35mm (1 1/4 - 1 7/16")
Shaft Diameter d (mm) 35
Static Load (c0r) kN 15.4
Dynamic Load (cr) kN 25.7
N (mm) 14
J1 (mm) 77.8
J (mm) 110
H3 (mm) 90
A1 (mm) 26
A3 (mm) 8
A2 (mm) 11
Bolt Size (mm) M12
Factor Fo 13.9
L (mm) 135
b (mm) 42.9
S (mm) 17.5

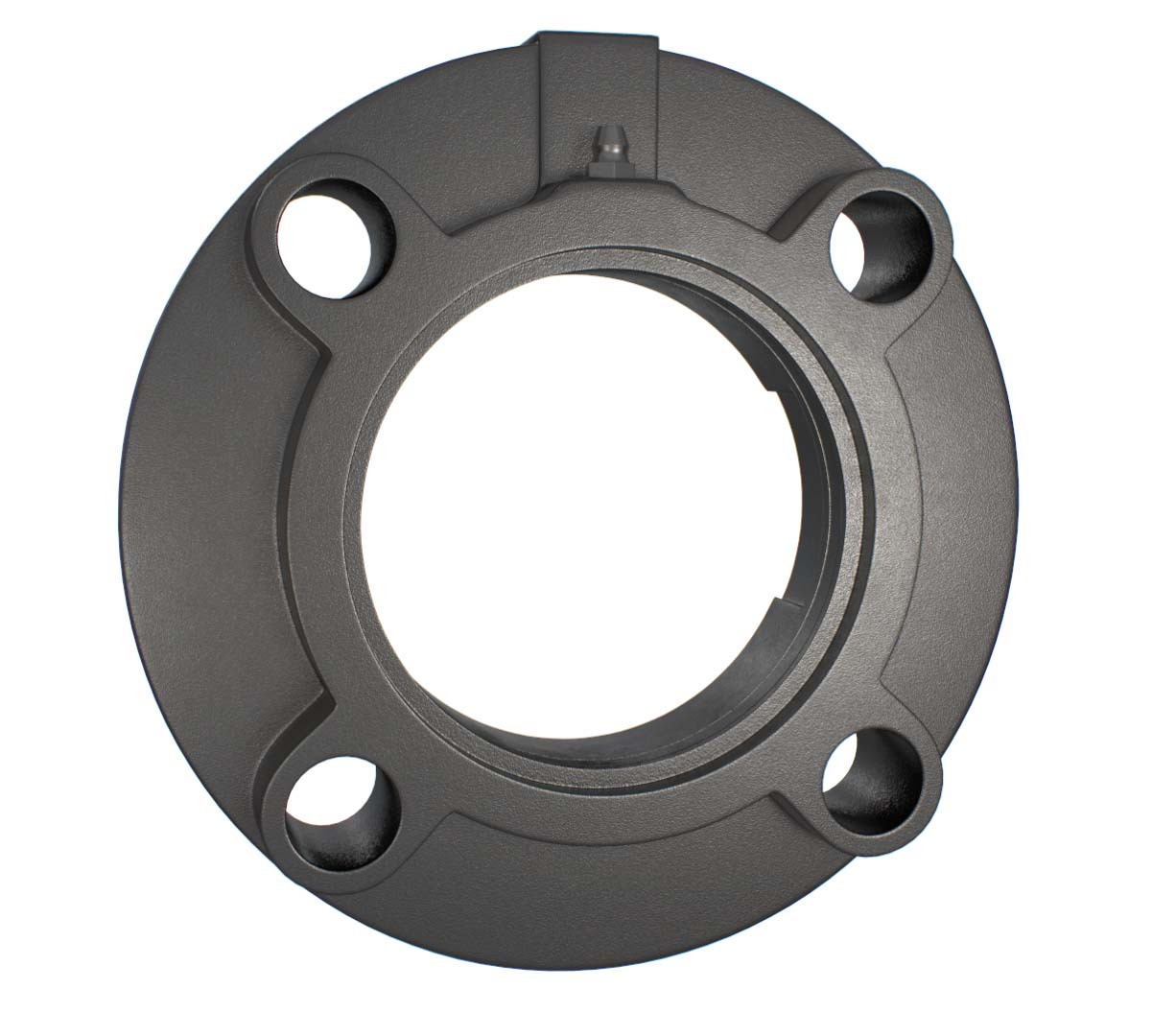

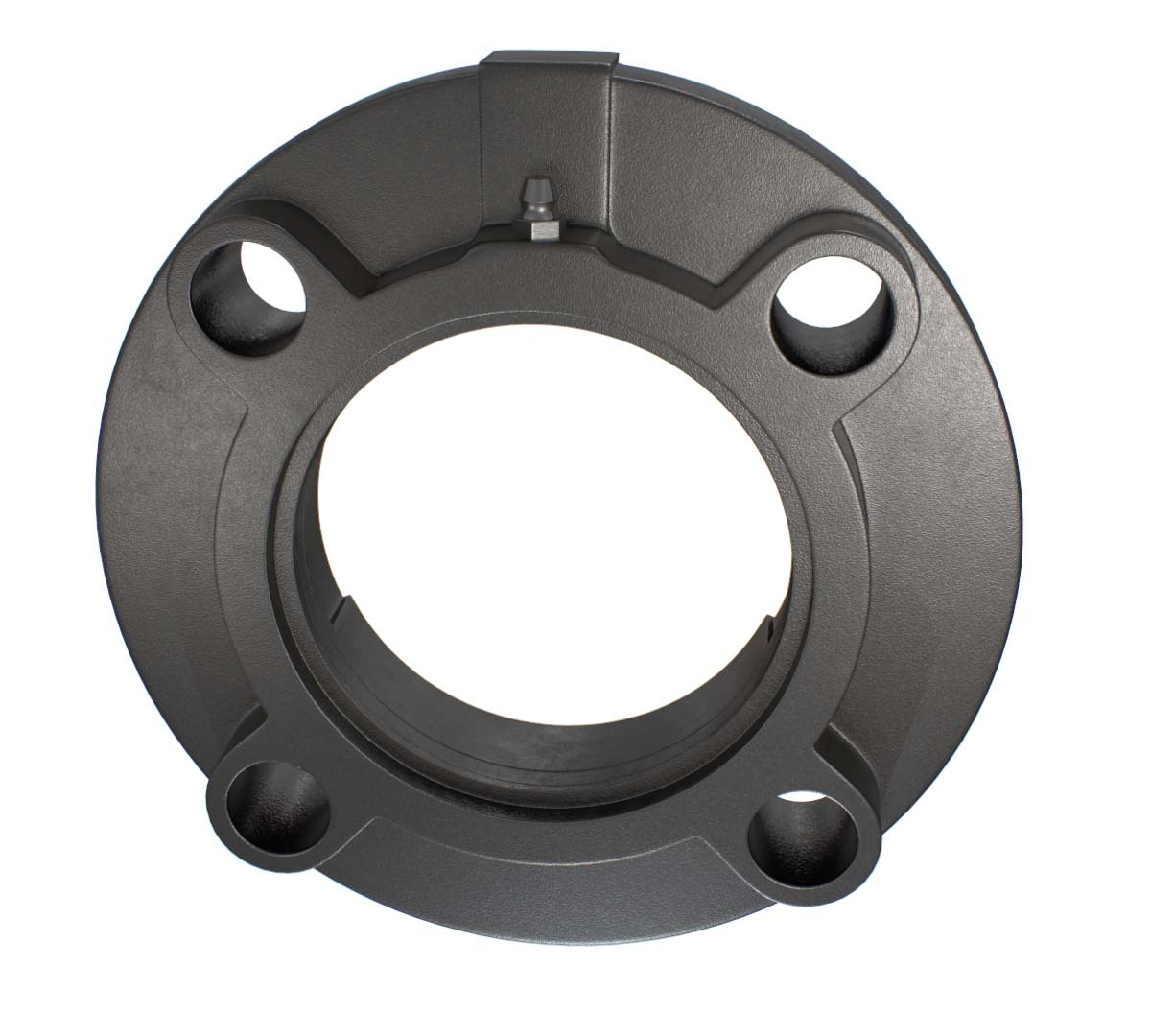

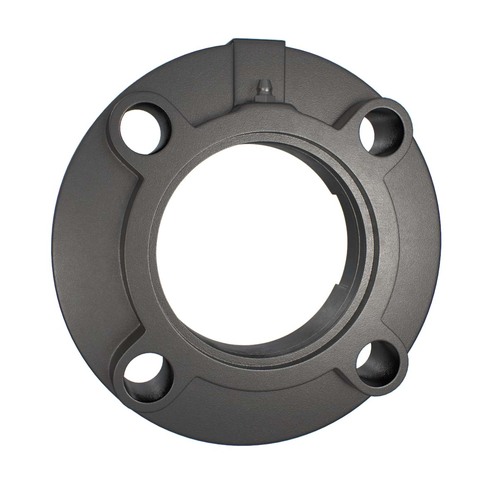

• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Light Four Bolt Spigotted Flange
