Specifications

AIMS SKU A0147909
Brand FYH
Model Number FC206/FYH

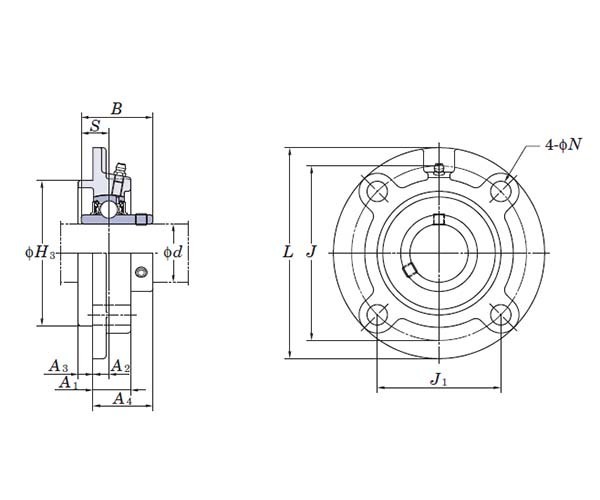

A4 (mm) 32.2
Shaft Diameter (d) 30mm (1 1/8 - 1 1/4")
Shaft Diameter d (mm) 30
Static Load (c0r) kN 11.3
Dynamic Load (cr) kN 19.5
N (mm) 12
J1 (mm) 70.7
J (mm) 100
H3 (mm) 80
A1 (mm) 23
A3 (mm) 8
A2 (mm) 10
Bolt Size (mm) M10
Factor Fo 13.9
L (mm) 125
b (mm) 38.1
S (mm) 15.9
• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron

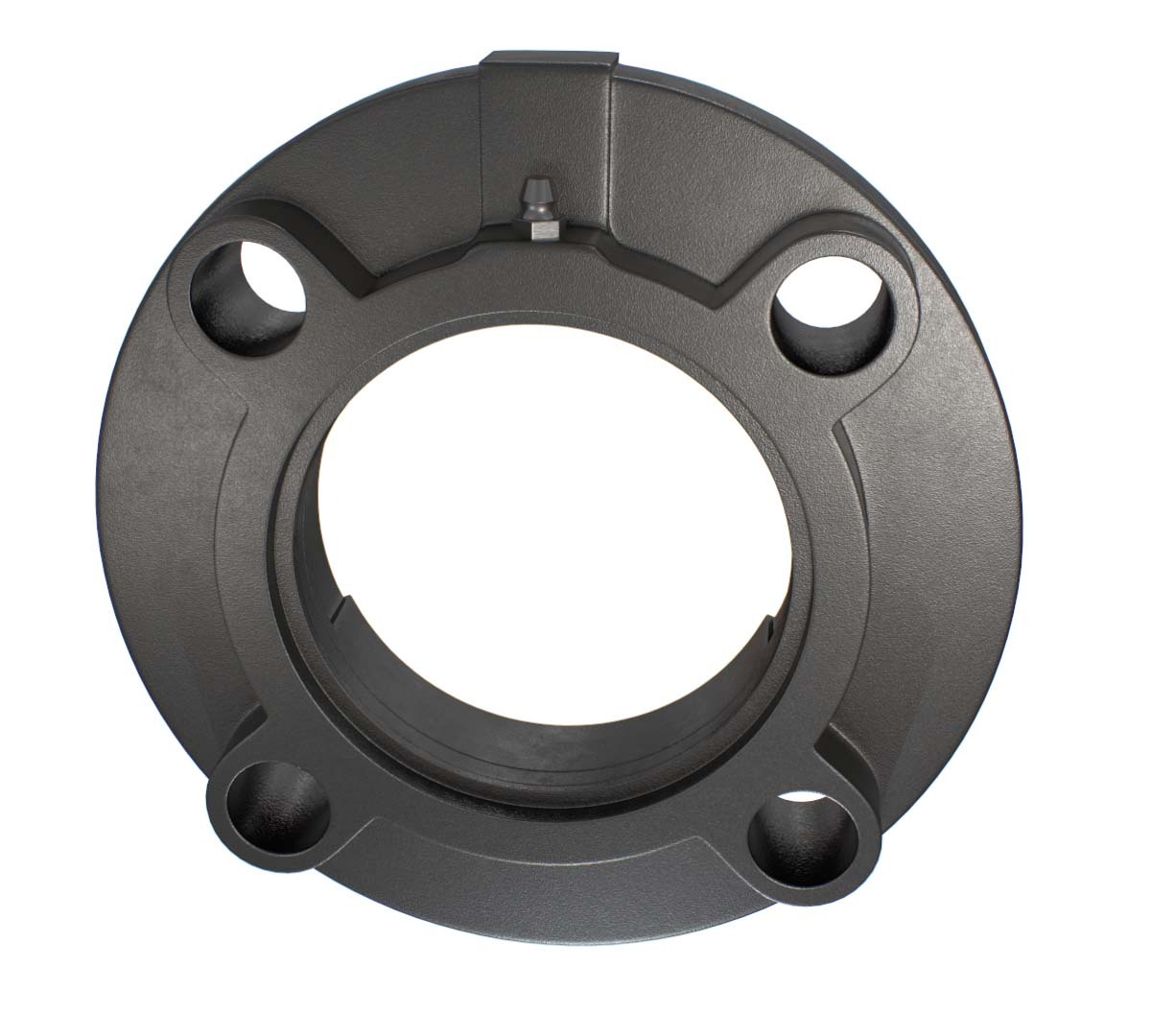

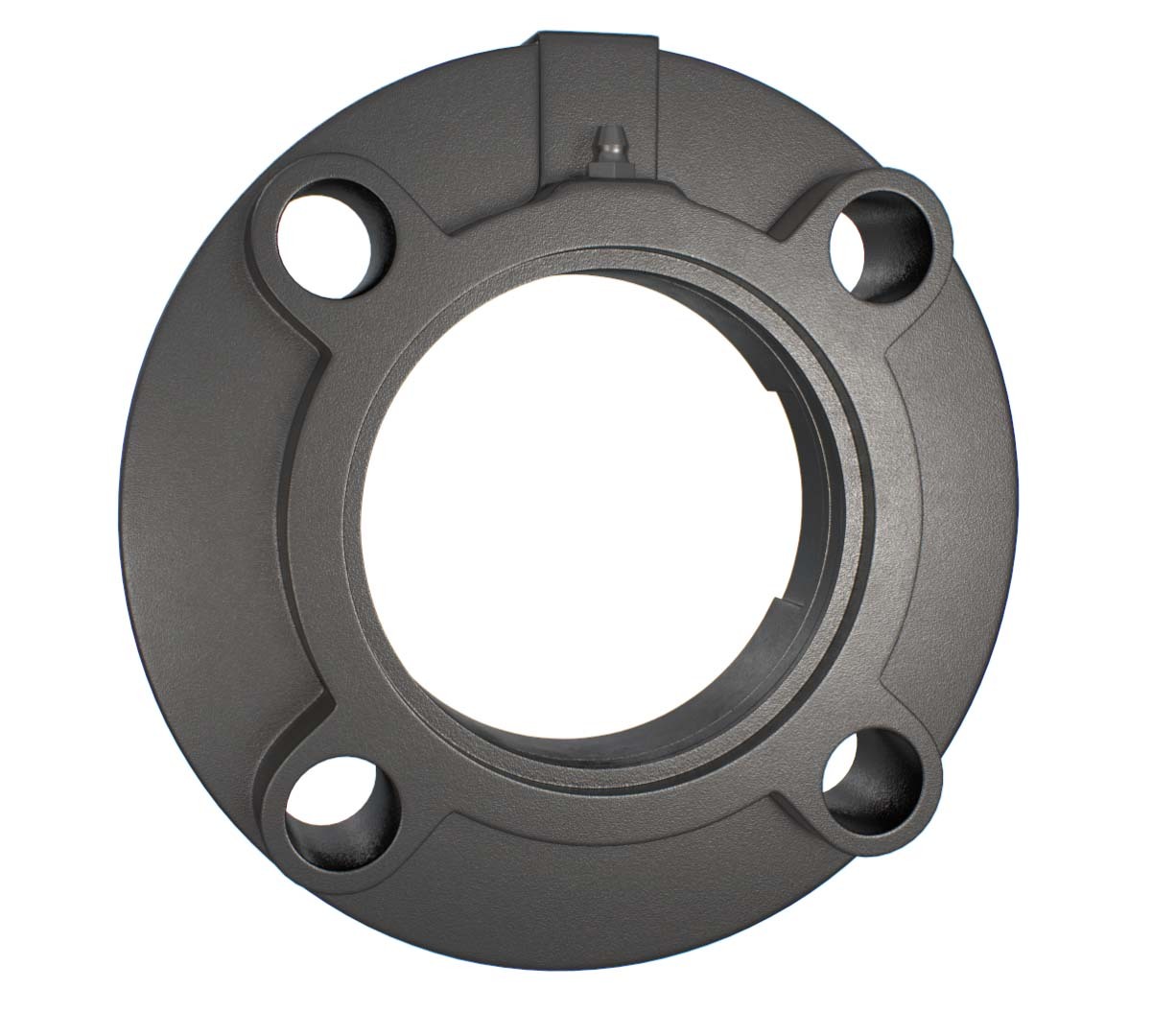

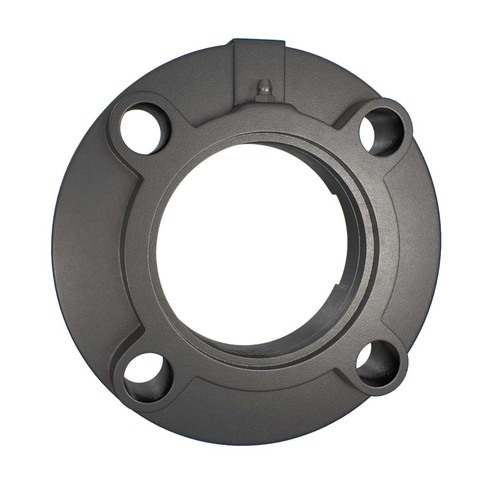

• Item Type Light Four Bolt Spigotted Flange
