Specifications

AIMS SKU A0147670
Brand FYH
Model Number FB204/FYH

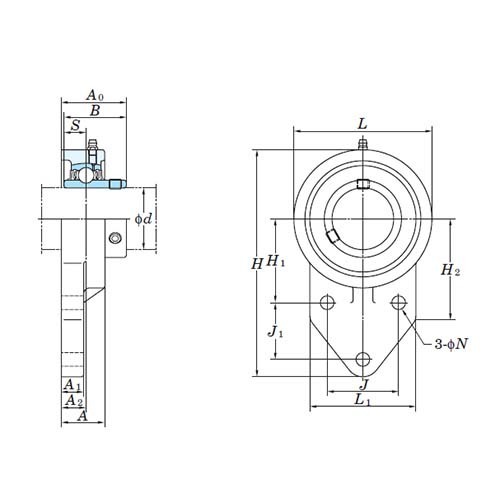

L1 (mm) 52
A0 (mm) 31.8
Shaft Diameter (d) 12- 20mm (1 1/2 - 3/4")
Shaft Diameter d (mm) 12
Static Load (c0r) kN 6.65
Dynamic Load (cr) kN 12.8
N (mm) 9.5
J1 (mm) 27
J (mm) 32
H1 (mm) 42
A2 (mm) 13.5
Bolt Size (mm) M8
Factor Fo 13.2
L (mm) 62
h2 (mm) 52
H (mm) 110
b (mm) 31
A (mm) 24
S (mm) 12.7
A1 (mm) 13
• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Three Bolt Offset Flange
