Specifications
- AIMS SKU A0104876
- Brand FYH
- Model Number NA206-20/FYH
- Dynamic Radial Load Rating 19.5

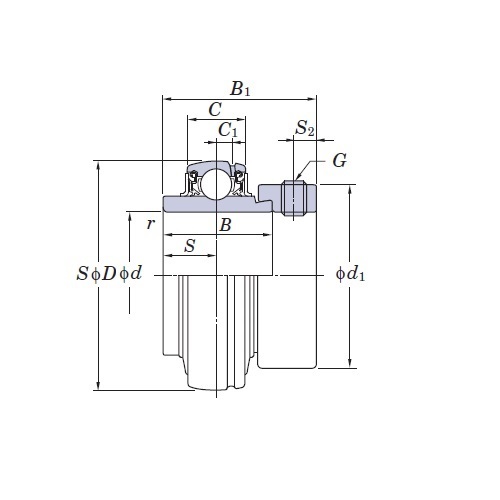

- C (inch) 0.748
- C1 (inch) 0.197
- r (min) inch 0.039
- S (inch) 0.72
- S2 (inch) 0.236
- Static Radial Load Rating 11.3
- Shaft Diameter (d) inch 1 1/4
- Nominal Bearing Outer (D) inch 2.441
- Nominal Inner Ring Width (B) inch 1.437
- Nominal Bearing Bore (d1) inch 1.752
- Type Ball Bearing Inserts
- System of Measurement Imperial
- Series NA200
- Item Type Eccentric Ball Bearings
SKU: A0104876

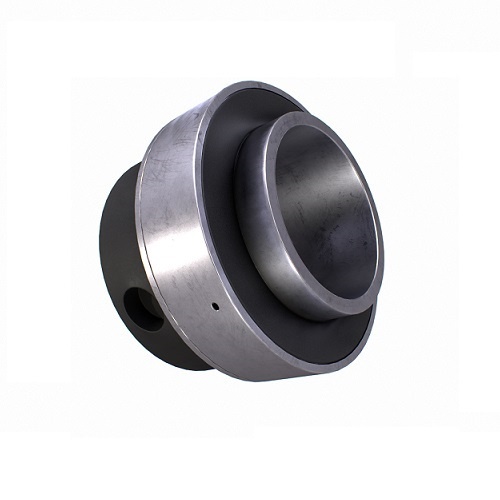

FYH Ball Bearing Inserts NA206-20 Eccentric Collar, 1 1/4'' Shaft Diameter
Ball Bearing Inserts NA200 (UEL) Series Lock Collar
$41.38
