Flexible Tyre Coupling F60 Half Flange Taperlock 1610 Bush - Finer Power Transmissions

Description

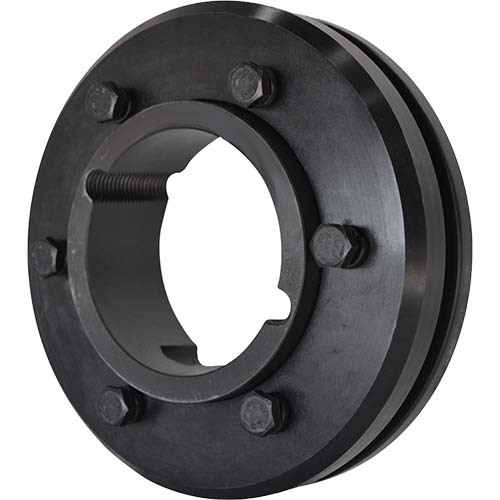

Flexible Tyre Coupling Half Flange

Tyre Couplings consist of two halves joined by a rubber tyre shaped element.
The tyre itself is torsionally soft and flexible; this allows the Tyre Coupling to compensate for large amounts of shock loading and backlash, as well as both parallel and axial misalignment.
Selected sizes in the Fire Resistant Anti-Static (FRAS) compound for those certain sensitive environments.

About High Flexible

Compensates for misalignment, up to; 4° angular, 6mm parallel, 8mm axial.
Torsional flexibility of up to 12°, at max. torque.

Specifications

AIMS SKU A0148816

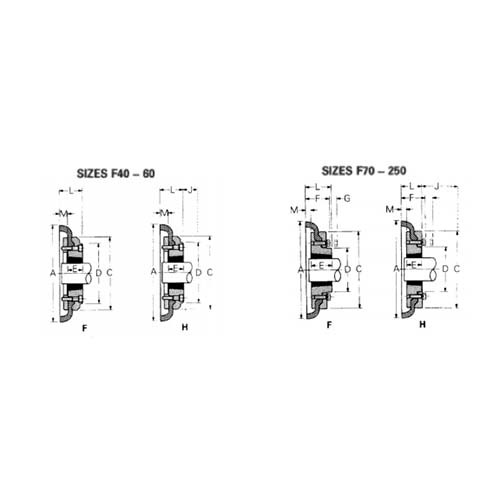

Bore B Min. (mm) 14

Kg (F) 2

M 16.5

L (F) 42

E (F) 25

End Float (mm) 2

Max. Misalignment Angular (°) 4

Max. Misalignment Parallel (°) 1.6

Bush (F) Size 1610

Size F60

Bore B Max. (mm) 42

Nominal Torque 127

Power @ 100 Rpm In Kw 1.33

Max. Speed (rpm) 4000

A 165

J 36

D 103

C 125

Type Hub & Flange
Flange Type F Type
