Description

Flexible Tyre Coupling - Synthetic

- Synthetic.

About Flexible Tyre Coupling

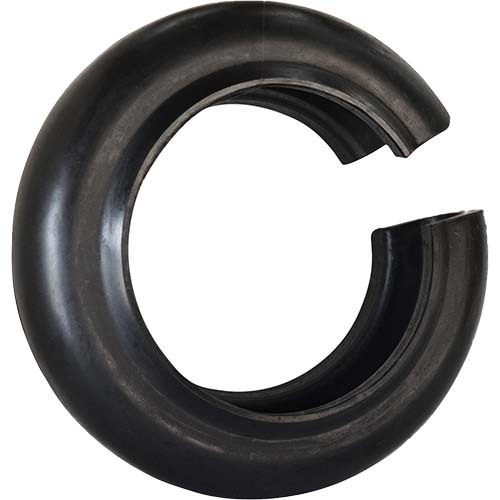

Consisting of two flanges, the two halves are joined by a rubber tyre.
The tyre itself is torsionally soft and flexible, this allows the Tyre Coupling to compensate for large amounts of shock loading and backlash, as well as both parallel and axial misalignment.
Available in the Fire Resistant Anti-Static (FRAS) compound for those certain sensitive environments.

Specifications

AIMS SKU A0152750

Size F180

Max. Speed (rpm) 1500

Power @ 100 Rpm In Kw 65.7

Nominal Torque 6270

Bore B Max. (mm) 125

Bore B Min. (mm) 55

Max. Misalignment Parallel (°) 4.8

Max. Misalignment Angular (°) 4

End Float (mm) 6

Type Flexible Tyre Coupling
