Description

Rougher - HRS (fine) - R45 UNI - Regular - Harmony

  • For roughing applications

Features

  • VHM-ULTRA grade of carbide for high performance
  • HRS geometry allows for heavy cuts in short & long chipping materials
  • Suitable for materials up to 1600 N/mm2
  • AlCrN for longer tool life

Specifications

  • Designation: UNI
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Helix Angle: R45
  • Shank Tolerance: h6
  • Geometry: 45 HRS
  • Standard: DIN6527L

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB

Specifications

  • AIMS SKU A0129467
  • Brand Sutton Tools
  • Model Number E5500400
  • System of Measurement DIN6527L

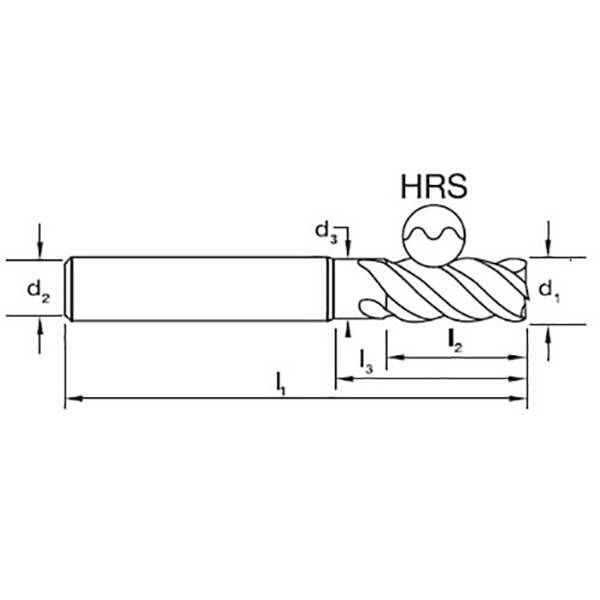

  • Cutting Tip (mm) 4
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 11
  • Product Group B0210
  • D3 (mm) 3.7
  • Geometry R45 HRS
  • L3 Reach Length (mm) 19
  • Shank Tolerance h6
  • Sutton Designation UNI
  • Shank Form HB
  • Type Rougher Endmill
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 3
  • Group Code E550
SKU: A0129467

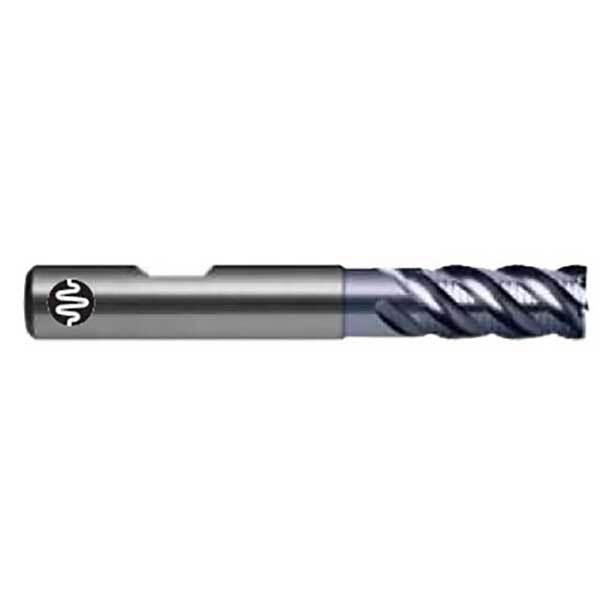

Sutton E5500400 4 x 57mm 3 Flute Roughing Endmill Carbide AlCrN Regular

Rougher - HRS (fine) - R45 UNI - Regular - Harmony
