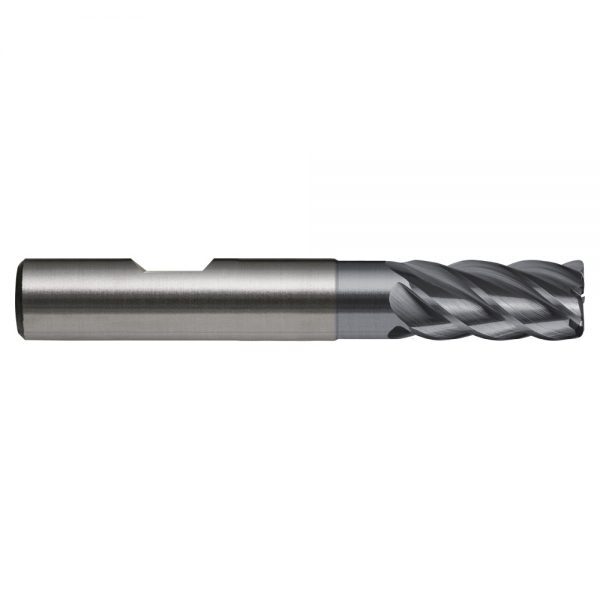

Sutton E475 5 Flute Corner Radius Endmill Carbide Xceed HB - Sutton Tools

Description

5 Flute Endmill - R40/42 Ni

Excellent solution for stainless steel and super alloy type materials.

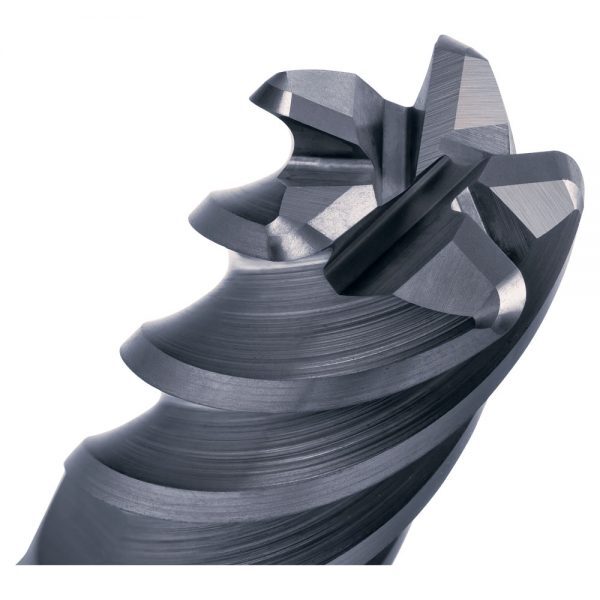

Optimized geometry with variable helix design ensures high productivity.
Suitable for slotting$ side cutting and finishing applications with one tool.
XCeed for outstanding oxidation resistance and hot hardness.
VHM-ULTRA grade of carbide for high performance.

Specifications

Designation: Ni
Material: VHM-ULTRA
Finish: XCeed
Shank Form: HA
Helix Angle: R40/42
Point Tolerance: e8
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Type: N (finishing)
Standard: DIN6527L

Applications

Optimal for Stainless Steel - Austenitic-180HB
Optimal for Stainless Steel - Duplex-250HB
Optimal for Stainless Steel - Precipitation Hardening-250HB
Optimal for High-temperature alloys - Fe based-200HB
Optimal for High-temperature alloys - Fe based-280HB
Optimal for High-temperature alloys - Ni / Co-based-250HB
Optimal for High-temperature alloys - Ni / Co-based-350HB
Optimal for High-temperature alloys - Ni / Co-based-320HB

Specifications

AIMS SKU A0129579

Brand Sutton Tools

Model Number E4750605

System of Measurement DIN6527L

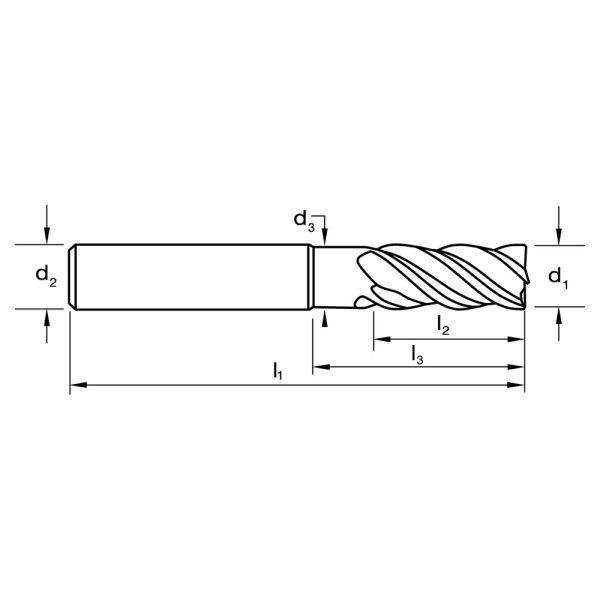

Cutting Tip (mm) 6

Overall Length (mm) 57

Shank (mm) 6

Flute Length (mm) 13

Helix Angle R40/42

L3 Reach Length (mm) 21

Point Tolerance e8

Point Form 45° Corner Chamfer

D3 (mm) 5.7

Shank Form HA

Sutton Designation Ni

Rad 0.5

Shank Tolerance h6

Type Endmill
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Xceed
Flutes 5
Group Code E475
Item Type N (finishing)
