Description

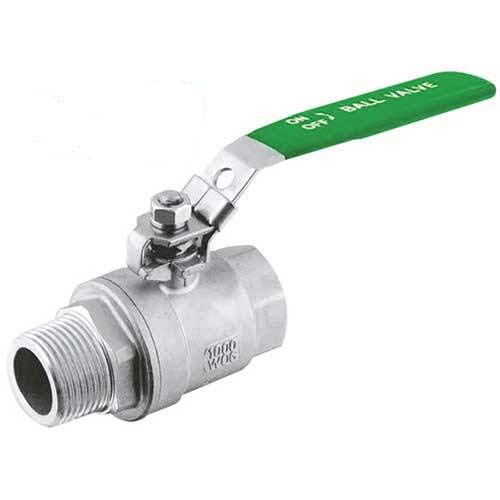

Dixon 2-Piece Ball Valve 316 Stainless Steel Female x Male BSP- Full bore

  • It is used as a 1/4 Turn Isolation valve in pipelines
  • Locking levers as standard with optional space-saving levers 1/4" to 1" on request
  • Two-piece full bore
  • Male-Female BSP
  • 1000 PSI CWP for water, gas and some corrosive fluids
  • Watermark Certified & Tested to API 598

Application

  • For use with air; water; oil; gas and most chemicals which are compatible with body & trim

How it works

  • Standard valve is manually operated with a lever to Open or Close
  • Quarter turn on/off and lockable In open OR shut position

Installation

  • Valves are screwed on to pipelines/Manifolds with matching Male BSP threads

Specifications

  • AIMS SKU A0132038
  • Brand Dixon
  • Model Number SS2P-MF-40MM
  • Size (mm) 40
  • Thread Female x Male BSP- Full bore
  • Size (inch) 1 1/2
  • Working Pressure (psi) Max 1000
  • Type Ball Valve
  • Material 316 Stainless Steel (ASTM A351 CF8M)
  • Item Type 2-Piece Ball Valve
  • Seat PTFE
SKU: A0132038

Dixon SS2P-MF-40MM \40mm 2-Pc Ball Valve 316 SS Female x Male BSP- Full bore

Dixon 316 Stainless Steel Two Piece Ball Valve BSP

$117.85
