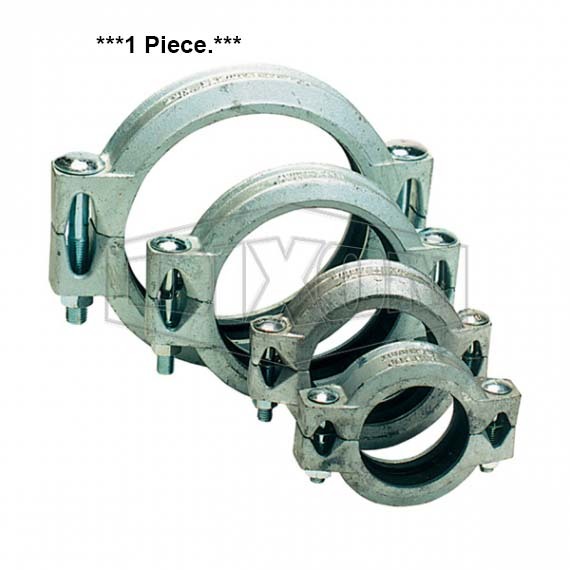

Dixon Shouldered Bolted Coupling 4" (100mm) - Iron

Description

Dixon Shouldered Bolted Coupling - Iron

Applications

For joining of shouldered end pipe in mining and construction industries.

Specifications

Working pressure (capacity) as tested to AWWA C606 requirements.
The safety factor of 3:1.
Nut & Bolt Size: M12 x 75mm.

Construction

SG Iron to AS 1831 400-250-12
Bolts & Nuts: Metric; grade 8.8
Buna-N gasket
2 bolts per clamp

About Dixon

Dixon is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Dixon, was founded in 1916.
Global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
Dixon's strategic objective is to create solutions that make products safer, leak-free, longer-lasting, and always available.

Specifications

AIMS SKU A0067572

Brand Dixon

Model Number 08/048/20/003

Size (mm) 100

Size (inch) 4

Weight (kg) 2.4

Working Pressure (psi) 754

Working Pressure (mpa) 5.2

Pipe OD (mm) 114.3

Seal Buna-N

Maximum Tightening Torque (nm) 30

No. Per Clamp 2

Nut & Bolt Size (mm) M12 x 90

Type Shouldered Bolted Coupling
Material Iron

Calculate Shipping

Resources

Technical Data Sheet

Browse other products under

Iron Pipe Fittings
